OSD Menu Access
OSD Format
OSD Appeareance
Specification :

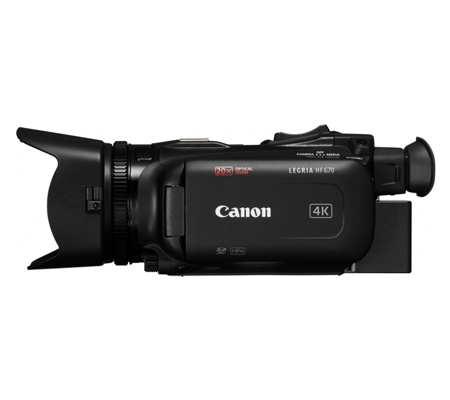

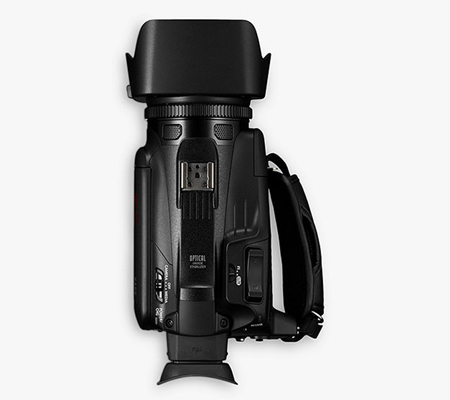

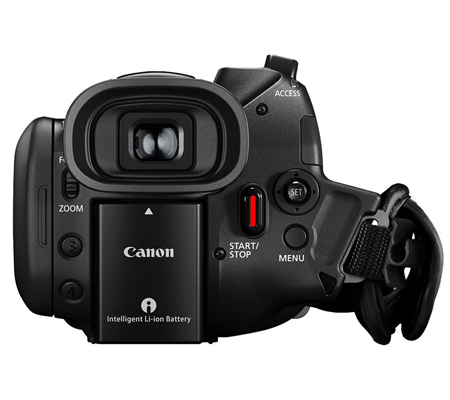

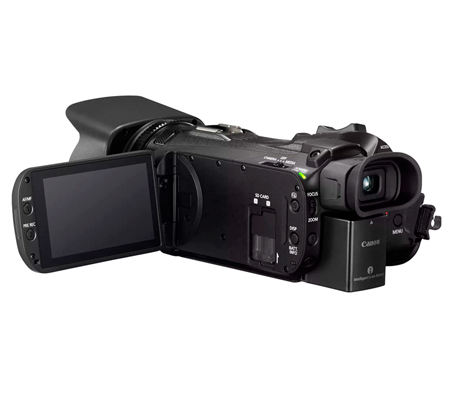

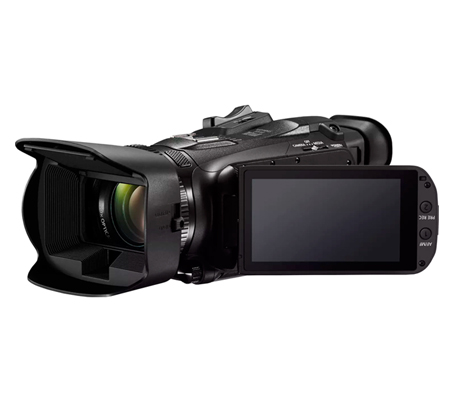

The HF G70 features DIGIC DV 6 high-performance video processing platform that enables 4K UHD 4:2:0 8-bit shooting and output. It also supports Over Sampling HD Processing for premium quality Full HD utilising the 4K sensor.
Recording in MP4 Format
Amazing Zoom Capability
Creative possibilities are further enhanced with slow & fast motion recording. Durations for shooting and playback at specific set numerical values displayed on the screen, letting users verify the effects at a glance.
USB Video Class (UVC)
With the new function of on-screen display (OSD) recording, it allows the HF G70 to be used as a surveilance camera, enhancing its value as it can be used for verification. Information such as date, time, time code and other text on the screen can be recorded. Users can select the items to be displayed and its recording position.
800x Digital Zoom
The 0.36-inch electronic viewfinder (EVF) has a high pixel count of approx. 1.77 million dots, so users can check the picture on the screen and see even minute details clearly. The tiltable, easy-to-use viewfinder helps you shoot by making it easy to see even when it's bright outside.
Key Features | UVC support LCD/EVF enhanced visibility USB Type-C USB power supply(PD-E1) OSD recording function 800x digital zoom 5-axis optical image stabilisation |
Sensor Size | 1/2.3 Inch CMOS |
Zoom Ratio Focal Length (35mm Equi) | 20x (29.3mm-601mm)-4K UHD, (30.5mm-627mm)-Full HD Only |
ND Filter | Auto Gradation ND |
Autofocus System | Hybrid AF |
Best Recording Quality (Reso, FPS, color space) Full HD Recording Quality | Legria: 4K UHD (3840 x 2160)25P YCC 420 Full HD (1920 x 1080) 50P YCC420 Vixia: 4K UHD (3840 x 2160)30P YCC 420 Full HD (1920 x 1080) 60P YCC420 |
Recording File Formats Bit Depth | MP4 (8-bit) |
Media Type, recording time (highest quality, 32GB card) | SD Card x 2 |
Packaged Battery Type (Continuous Record Time) Optional Battery Type (Continuous Record Time) | BP-820 & BP-828 |
Screen Size (inch) EVF Specification | 3.5" LCD capacitive touch screen 0.36" OLED Tilting EVF |
Dimensions (mm) Weight (kg) (With battery) | Dimensions 130 x 180 x 231 Weight 1.135kg 940g (body only) |
Highest quality SDI Output, 50i, SDI output format | N.A |
Network Capability | Nil |
Infra Red | Nil |
