Specification :

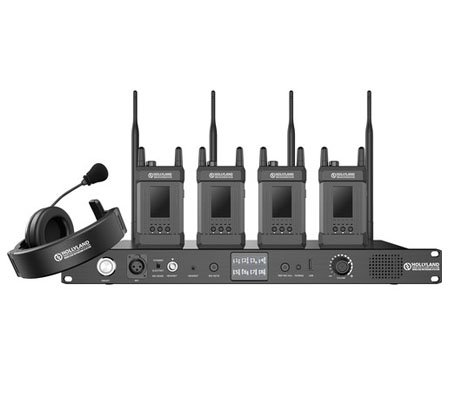

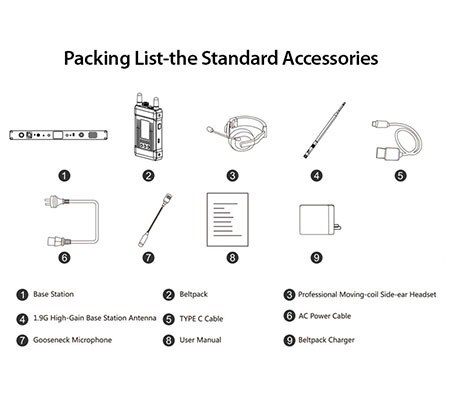

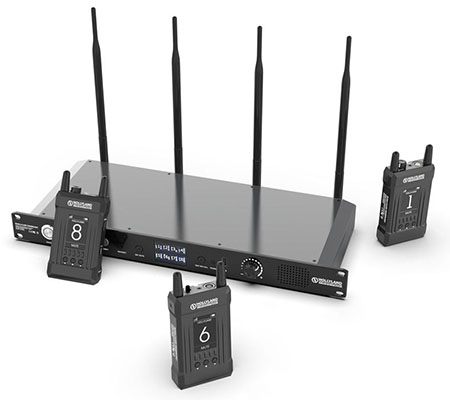

Ideal for broadcasting, training, and meetings, the Hollyland Syscom 1000T-4B is a full-duplex intercom system offering carrier-grade voice quality and wireless tally at a range of up to 1000 feet. It includes a base station with four high-gain antennas, four beltpack transceivers with chargers, four headsets, and a gooseneck microphone.
The base station features extensive connectivity such as LEMO and 3.5mm headset sockets, analog voice I/O via XLR jacks, USB Type-A and USB Type-C ports, and a DB25 tally interface. Thanks to its support for AC and DC power supplies, you can be assured of continued operation even if one power source fails. The base station also provides adjustable audio levels and a remote mic kill function.

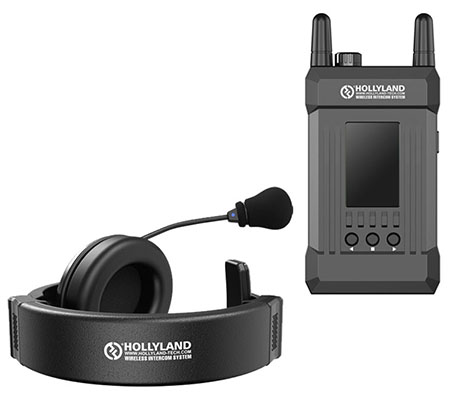

Plug the supplied headsets into the beltpack transceivers and enjoy up to eight hours of run time before needing to recharge the transceivers. With wireless tally and LCD screens that display different colors, the transceivers allow clear communication through simple color cues.
| Number of Included Headsets | 4 x Single-Sided Headset |
| Number of Included Transceivers | 4 x Beltpack |
| Earpiece Design | Over-Ear (Circumaural) |
| Earpiece Connection / Wearing Style | Headband |
| Number of Earpieces | Single Earpiece (Left Side) |
| Sound Field | Mono |
| Driver Type | Dynamic |
| Controls/Microphone Location | Microphone: Fixed Boom |
| Mic Boom Location | Left Side |
| Wireless Transmission | Digital 1.9 GHz Digital 2.4 GHz |
| RF Bandwidth | Up to 1.73 MHz |
| Wireless Modulation | GFSK |
| Duplex Mode | Full-Duplex (FDX) |
| Approximate RF Sensitivity | -93 dBm |
| Wireless Range | 1000' / 304.8 m |
| Audio Connector to Source | 1 x 1/8" / 3.5 mm TRRS Male Straight 1 x LEMO (Unspecified Type) Female Straight |
| Battery Chemistry | Beltpack: Lithium-Ion Polymer (LiPo) |
| Capacity (mAh) | 4000 mAh |
| Runtime | Beltpack: 8 Hours |
| Users per System | 8 |
| I/O Connectors | 2 x XLR 3-Pin - Audio Input 1 x XLR 3-Pin - Audio Output 1 x LEMO - Audio Input/Output 1 x 1/8" / 3.5 mm - Audio Input/Output 1 x USB Type-A - Input/Output 1 x USB Type-C - Input/Output 1 x DB25 - Control Input/Output |
| Antenna | Base Station: 4 x 1/2 Wave External, Detachable |
| AC/DC Power Adapter | 10 to 20 VDC (Not Included) |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 6 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | CE, FCC, as per Manufacturer |
| Water Resistance | None |
| IP Rating | None |
| Material of Construction | Metal |
| Dimensions | Base Station: 19 x 6.89 x 1.75" / 482.6 x 175 x 44.4 mm Beltpack: 4.72 x 2.8 x 0.98" / 120 x 71 x 25 mm |
| Weight | Base Station: 6.4 lb / 2.9 kg Beltpack: 0.7 lb / 0.3 kg |
| Package Weight | 40.075 lb |
| Box Dimensions (LxWxH) | 25.7 x 20.9 x 12.7" |
