Specification :

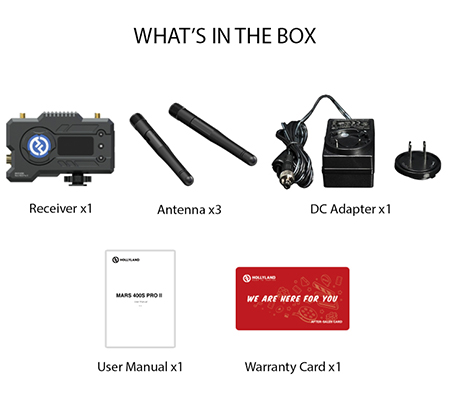

Included :
1x Receiver
3x Antenna
1x DC Adapter
1x User Manual
1x Kartu Garansi Resmi

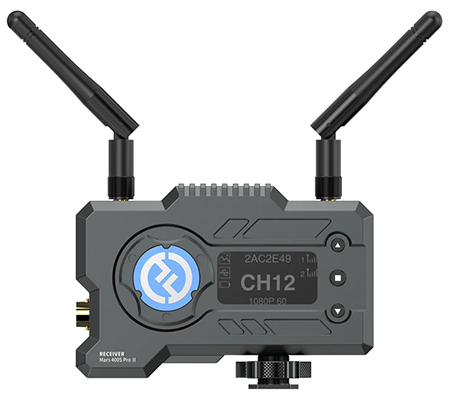

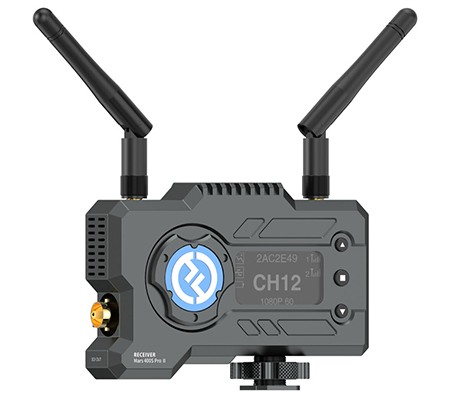

Mars 400S Pro II is a powerful video transmission device with several remarkable features. It offers a transmission range of up to 450ft (150m) and achieves a low latency of just 70ms. Additionally, Mars 400S Pro II is equipped with SDI+HDMI dual interfaces, supports multi-receiver setups, and allows monitoring through the Hollyview App.
Supports 12 Mbps data rate, enabling high-definition video transmission and delivering clear, refined image quality with rich details.
Mars 400S Pro II raises the bar with an incredibly low latency of just 70ms. It outperforms Mars 400S Pro by reducing latency by 30% and providing a stable signal transmission range of up to 450ft. This ensures exceptional high-definition image quality and an immersive low-latency experience. Furthermore, Mars 400S Pro II is compatible with Mars 400S Pro, allowing them to be paired and used together.
Note: The LOS range of 450ft (150m) is based on interference-free laboratory measurements.
Equipped with both SDI and HDMI interfaces, Mars 400S Pro II provides enhanced device compatibility and convenient connections to various types of equipment. Whether it's a DSLR camera or a professional film camera, Mars 400S Pro II can fulfill your connectivity requirements.
Upon startup, Mars 400S Pro II automatically selects the best frequency channels. Additionally, channel scanning can be conducted using the receiver or the HollyView App, providing a visual representation of signal interference levels at each frequency. Allows for the swift identification of the most suitable frequency.
Mars 400S Pro II offers flexible solutions to meet monitoring needs, including team collaboration, multi-crew monitoring, and multi-member cooperation.
Mars 400S Pro II is equipped with a three-speed fan adjustment feature (Off, Low Speed, Auto). Its intelligent cooling design allows it to perform optimally in various usage scenarios by reducing device temperature and ensuring stable signal transmission.
The device automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation.
The fan operates at the lowest speed, reducing noise generation. This mode is suitable for environments where low noise levels are required.
The fan is completely turned off, making it suitable for scenarios that require absolute silence.
Integrated with a cold shoe featuring a 1/4-inch threaded cold shoe simplifies the installation process. Simply connect the cold shoe of the Mars 400S Pro II to the cold shoe slot on the device, without the need for any cumbersome additional installation steps.
| Item | Parameters |
|---|---|

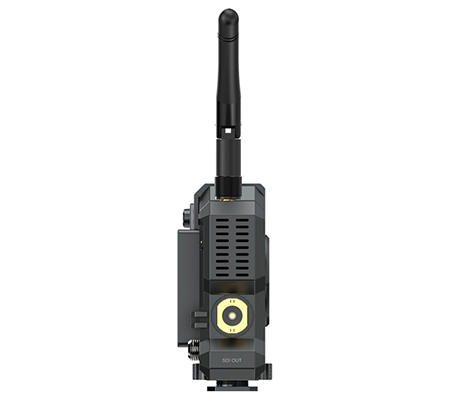

| Interfaces | HDMI Input(Type A Female) SDI Input 2* Antenna Interfaces (RP-SMA Male) DC Input USB Type-C |
| Supply Interfaces | DC Power Input:6-16V USB Type-C Power Supply: 5V/2A Battery Power Supply: 6-16V DC |
| Power Consumption | <7W |
| Weight | 206g |
| Dimension | (L*W*H): 110*72*33.5mm (The Battery Plate Exclude) |
| Input / Output Video Format | HDMI: 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 SDI: 1080p60/59.94/50(Level A) 1080p60/59.94/50(Level B) 1080i60/59.94/50 1080p30/29.97/25/24/23.98 1080psf24/23.98 1080psf30/29.97/25 720p60/59.94/50 |
| Frequency | 5GHz |
| Receiver Sensitive | -80dBm |
| Transmission Latency* | HD Mode : 66ms Speed : 56ms |
| Bandwidth | 20MHz |
Note: The operating frequency and TX power vary by country and region. In some countries and regions, the 5.1GHz, 5.2GHz, and 5.8GHz frequency bands are prohibited, or the 5.1GHz and 5.2GHz frequency bands are only allowed for indoor use. Please refer to local laws and regulations for more information.* test data when 1080p60 signals are transmitted in a laboratory environment.
