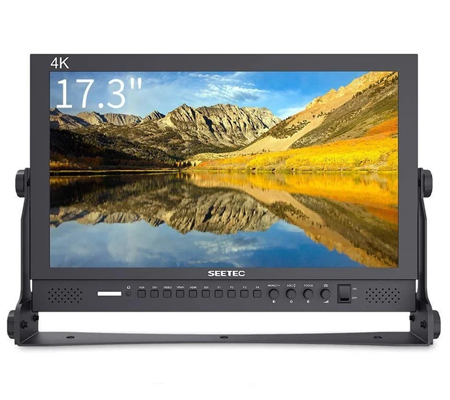

Feelworld SEETEC P173-9HSD 17.3 Inch Broadcast Monitor IPS with SDI 4K HDMI

Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

Let Your Video Shooting Become Easier
SEETEC has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers.
Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, SEETEC aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.

Stability and Reliability
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!

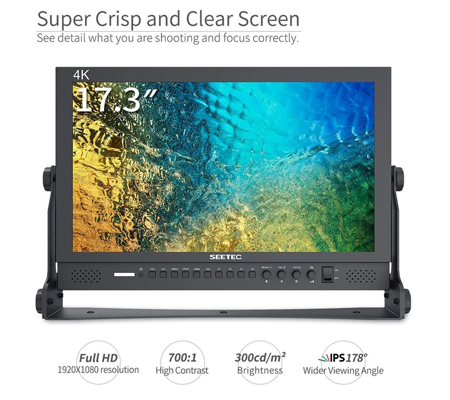

1920X1080 Full HD Panel
With the P173-9HSD's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD's Full HD Panel is the tool of choice for high quality color reproduction.

IPS 178° Wide View Angle
High Quality: no brightened dot, no streaking
178° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction

Hassle-free Power

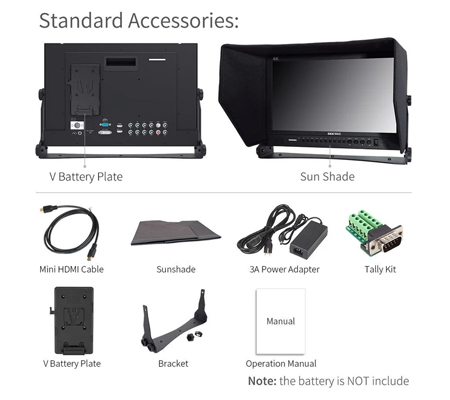

We've made it easy to power the monitor. P173-9HSD can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

Mounting Points
Attach to camera support or hang it anywhere
There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment.

VIDEO ASSIST FUNCTIONS

Open tab

* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Color Temperature Adjustment
* Aspect Ratio (Nonsupport in 4K input)
* Pixel to Pixel (Nonsupport in 4K input)
* Zoom All (0~100 adjustable) (Nonsupport in 4K input)
* U/D Zoom (0~100 adjustable) (Nonsupport in 4K input)
* L/R Zoom (0~100 adjustable) (Nonsupport in 4K input)

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.

sdi hdmi monitor 4k

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

sdi hd monitor

Camera Mode Function
It will be full screen under camera mode.

sdi external monitor

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

sdi monitor waveform 17

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)

sdi ips monitor

Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.

17” monitor with speakers hdmi

DISPLAY SPEC.

Screen Size:17.3" IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.1989(H)×0.1989(V) mm
Aspect Ratio: 16:9
Brightness: 300cd/m²
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

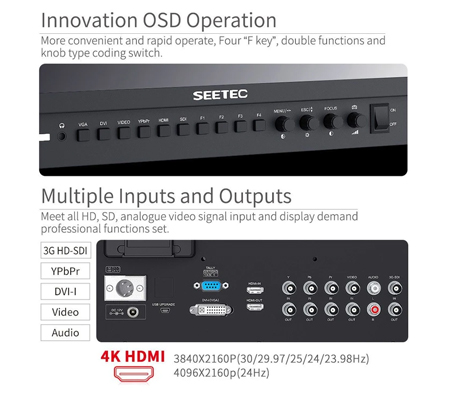

INPUT/ OUTPUT

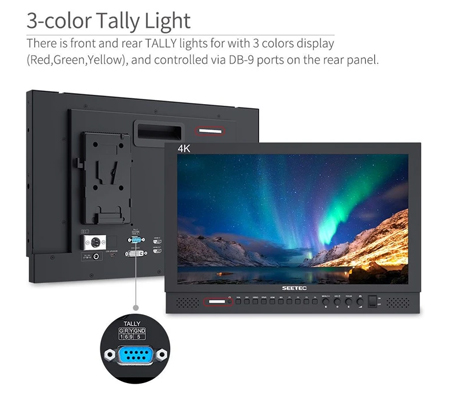

Input: 3G-SDI, HDMI, Y/Pb/Pr, Video, Audio(L/R), DVI-I, Tally
Output: 3G-SDI, HDMI, Y/Pb/Pr, Video
Audio: 3.5mm Stereo Headphone, Speaker
SDI Support Format: 480i/576i; 720p (60/59.94/50/30/29/25/24/23.98); 1080i (60/59.94/50); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
