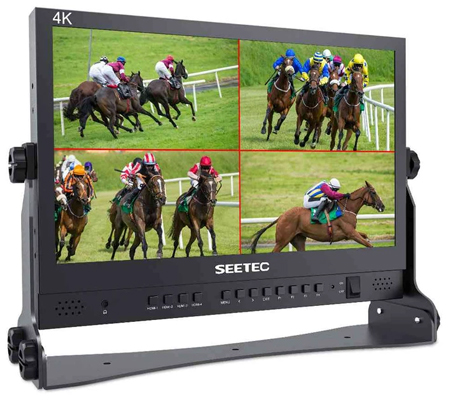

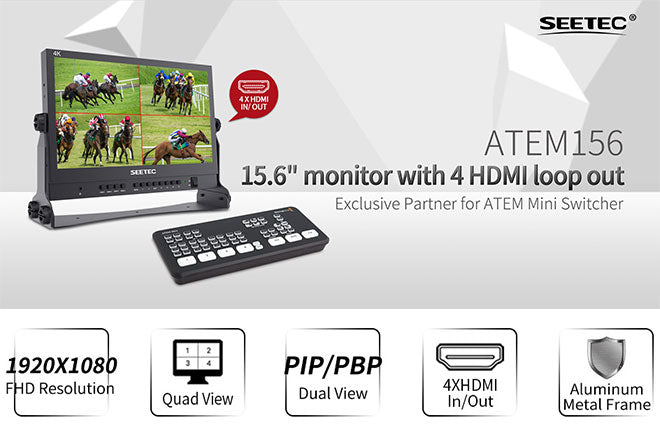

Feelworld Seetec ATEM156 15.6 Inch Live Streaming Broadcast Monitor with 4 HDMI

Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

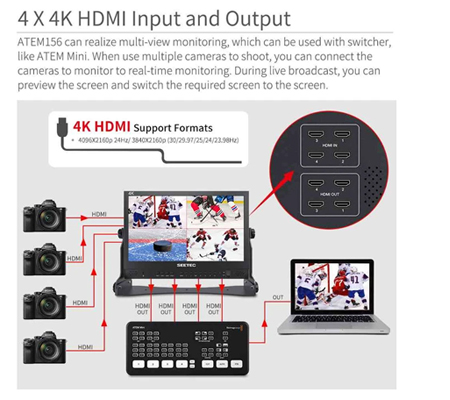

4 X 4K HDMI Input and Output : ATEM156 can realize multi-view monitoring, which can be used with switcher, like ATEM Mini. During live broadcast, you can preview the screen and switch the required screen to the screen.
Sharper and More Detailed Image : The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.
Improve the Shooting Efficiency : SEETEC ATEM156 has set up professional monitoring functions according to the actual needs of pre-shooting and post-production. It contains focus-checking functions, such as Peaking Focus, False Color, and Pixel to Pixel, to assist in getting sharp images.
Easy Button Operation : It is equipped with a simple control panel, you can customize the shortcut key functions and quickly call them out. You can use the 12V DC power input and V- mount battery plate to power monitor.

ATEM156 monitor

Multiview

Quad View/ Dual View

When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction

VESA Mount Points
The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you want to mount your broadcast monitor in cubicles, on walls or anywhere you need!

Aluminum Metal Frame
The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting, location shooting or live broadcast.

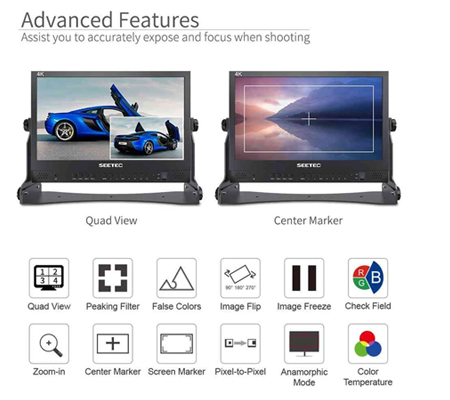

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

hd 501 monitor

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

4k broadcast monitor

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)

ultra broadcast hd monitor

Display Spec.

Model: ATEM156
Screen Size: 15.6" IPS
Color Depth: 16.7M colors (8-bits)
Resolution: 1920×1080 pixels
Pixel Pitch: 0.17925 (H) X 0.17925 (V) mm
Aspect Ratio: 16:9
Brightness: 250cd/m²
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

Input / Output

Input: 4 X HDMI(Support 4K 30Hz)
Output: 4 X HDMI (Support 4K 30Hz)
Audio Out: 3.5mm Stereo Headphone, Speaker
HDMI Support Format:
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840×2160p (30/25/24), 4096×2160p (24)

General

Input Voltage: DC12?24V
Power Consumption: ≤12W
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size (mm): 372L×262H×28.4D (mm) (Without Bracket)
Unit Weight: 1.57kg (Without Bracket)
