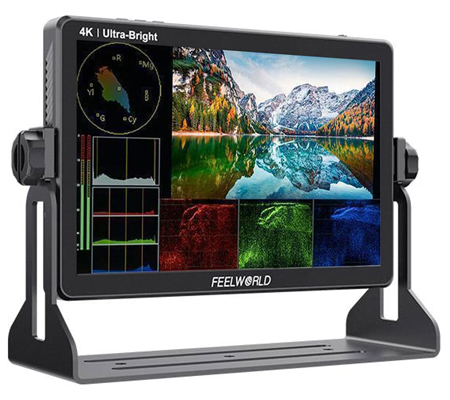

FeelWorld LUT11S 10.1 Inch 3G-SDI 4K HDMI Touchscreen Field Monitor

ultra bright monitor

high resolution monitor

10.1-inch Professional SDI/HDMI Camera Monitor

FEELWORLD LUT11S is a 10.1-inch with full touch screen, ultra brightness 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz

HDMI signal input and output. Provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance,

making the operation easier. There is a F970 external install and power kit on the rear of LUT11S, which can install such as wireless transmission,

LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to

focus pulling in the film crew. The dual battery plates design can install two F970 batteries at the same time for long-time power supply even outdoors.

Ideal for crew field shooting, monitoring and post-production.

external power kit monitor

10.1” LCD Full HD Resolution

Viewing clearly and capture every detail with confidence

The LUT11S comes with a 10.1-inch 1920x1200 full HD panel, has excellent color reproduction. The wide 170º viewing angle makes it easy for multiple

members of the crew to watch it at the same time.

wide viewing monitor

2000nit Daylight Viewable

Ideal for outdoor shooting

With the support of 2000 nits of ultra-high brightness, LUT11S is not afraid of strong light. And the outdoor shooting screen display is clearly visible,

you can shoot without a sunshade.

daylight viewing monitor

Light Sensor for Auto Dimming

The LUT11S has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust

the monitor brightness to fit your filming environment.

10inch professional monitor

New UI Menu, More Intuitive and Intelligent

LUT11S adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.

new ui interface monitor

Custom Shortcut Keys

On the top of LUT11S comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual

needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

custom shortcut monitor

Full Touch Screen Design

Easy and sensitive operation, make your filming more efficiency

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring

functions without buttons. Plus, you can also operate via scroll wheel key.

touch operation monitor

Touch Screen Operating Instruction

1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.

2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function.

Double-click the shortcut menu function and select the function setting with the "<" or ">" key.

3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen

(1/2 split screen), you can directly adjust the volume.

4. Click any space beside the menu to exit.

easy touch setting monitor

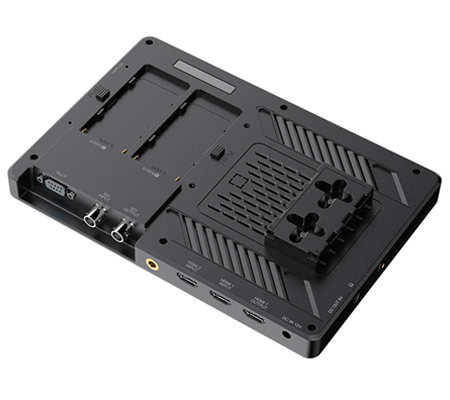

Innovative External Install and Power Design

Simplify your photography equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external

equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external

power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied

by the equipment and reducing the weight of photography equipment.

The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly

loosen the screws to remove the kit.

external power installation monitor

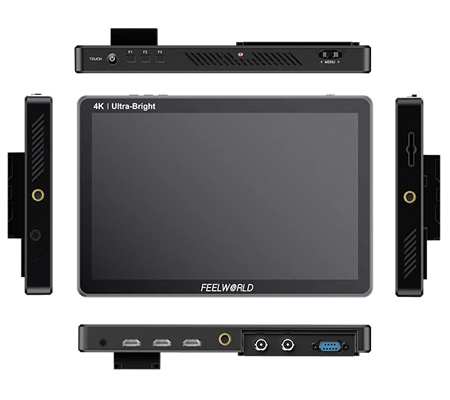

SDI+Dual HDMI, More Interfaces Selection

Compatible with movie cameras, DSLR cameras

SDI perfect for the movie cameras, dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is

transmitting without loss and the screen is more smooth and clear. And provides 3.5mm headphone jack to monitor audio.

Note: HDMI1 input default to loop-out from HDMI1 output, HDMI2 can’t loop-out

dual hdmi monitor

DC Power Supply

Power your DSLR or mirrorless camera

The LUT11S is not only equipped with DC IN 12V (suit for use 12/3A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters

to power their cameras. With a battery adapter cable (Optional), the LUT11S extends camera run-time, while providing a more usable display.

Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic).

More adapters coming soon.

Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or

video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity

fully charged battery.

sdi lut loopout monitor

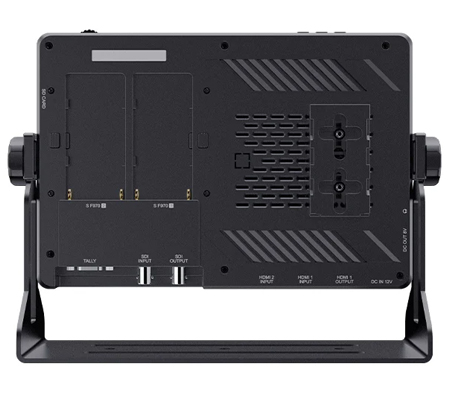

Dual Battery Plates

Long-lasting power for outdoor shooting

The rear of monitor of LUT11S have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. In addition,

you can switch the battery quickly, just double tap the battery icon on the upper right corner of the monitor about 3 seconds to finish the switching,

and don’t worry interrupting monitoring. Install one F970 battery (6600mah) last for about 2 hours, and install two F970 batteries last for about

3.5-4 hours. You can choose install 1 or 2 battery base on your need.

? Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase

separately. Higher capability (working time) will be longer)

dual battery monitor

full hd camera monitor

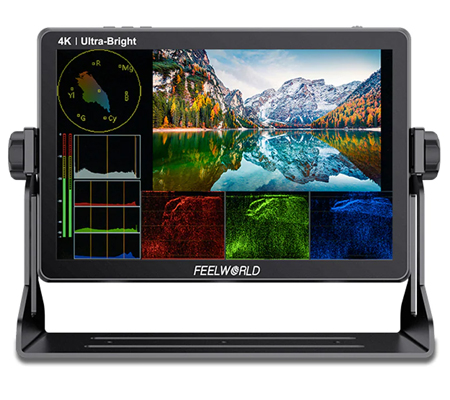

Smarter Tools for Absolute Precision

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus,

framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color,

safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic

de-squeeze monitoring.

smart tool monitor

Load Custom 3D LUTs?Preview Filming Look in Field Shooting

Support to load 50 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early

stage of shooting. You could use built-in LOG or upload .cube files. LUT11S allows you to load internally up to 50 custom LUTs, looks or profiles at

any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

custom lut monitor

3G-SDI Supports 3D-LUT Loopout

The LUT11S supports 3G-SDI signal LUT loop-out function, which can output custom LUT image to other displays, so the director and photographer

can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and

"SDI Out (LUT)" on the menu.

dc out monitor

HDR Monitoring

What you see is what you get

LUT11S supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR,

helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select

Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

4k hdr monitor

Accurate waveform monitoring

Save your budget

When you need to analyze image quality more accurately than simply looking at the picture then use LUT11S's built in waveform monitoring! Choose from

waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that

shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to

open all scope mode. LUT11S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

all waves monitor

Three Colors Tally Indicator

Strengthen the cooperation between the cameraman and the director

There is a rear TALLY light with 3 colors ?green, red, yellow?display, and controlled via DB-9 ports at the bottom of the monitor.

three color tally monitor

Application as Jib Monitor

For the large-scale event, live performance and TV program, jib crane shooting is often used to capture footage from all angles. LUT11S is equipped with

10.1-inch ultra high brightness screen, wide viewing angle, and rich signal interfaces, it is an ideal choice for jib crane shooting whatever indoor or outdoor.

jib crane monitor

Multiple Installation Methods

Meet your diverse need of monitoring

The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment

with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

multiple mounting monitor

Display Spec.

Model	LUT11S
Screen Size	10.1" IPS
Resolution	1920x1200 pixels
Pixel Pitch	0.113(W) x 0.113(H) (mm)
Aspect Ratio	16:10
Brightness	2000cd/m²
Contrast Ratio	800:1
Backlight	LED
Viewing Angle	85°/85°(L/R) 85°/85°(U/D)

Input

2 X HDMI	HDMI
1 X SDI	3G-SDI
1 X Tally	9 Pin Connect

Output

1 X HDMI	HDMI
1 X SDI	3G-SDI
1 X DC	Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio

3.5mm Stereo Headphone

SDI Input Support Format

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i(60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

2048x1080i (60/59.94/50)

2048x1080p (60/59.94/50/30/29.97/25/24/23.98)

SDI Output Support Format

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i(60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98)

General

Input Voltage	DC7?24V
Power Consumption	≤28W
Working Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Install Way	1/4"-20 Thread Socket ( Left, Right, Bottom)
Unit Size	242Lx156Hx23D(mm)
Unit Weight	810g
Color Box Size	265L110W212H(mm)
Outer Carton Qty	10
Outer Carton Size	590270480 (mm)
Gross Weight	17.43kgs
