Included :
1x Monitor
1x Micro HDMI Cable
1x HDMI Cable
1x Mini Hot Shoe Mount
1x USB-A to USB-C Adapter
1x Cable Management Tie
1x Manual Book
Compact. Powerful. Bright

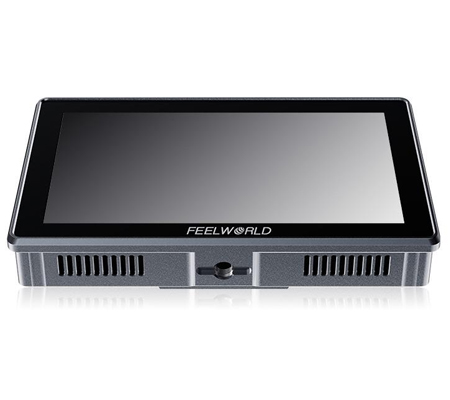

FEELWORLD H5 is a portable 5.5-inch high brightness 12G-SDI monitor,supports up to 2160p/60 format, and have a series of auxiliary functions that's perfect for digital cinema, broadcast, live production.

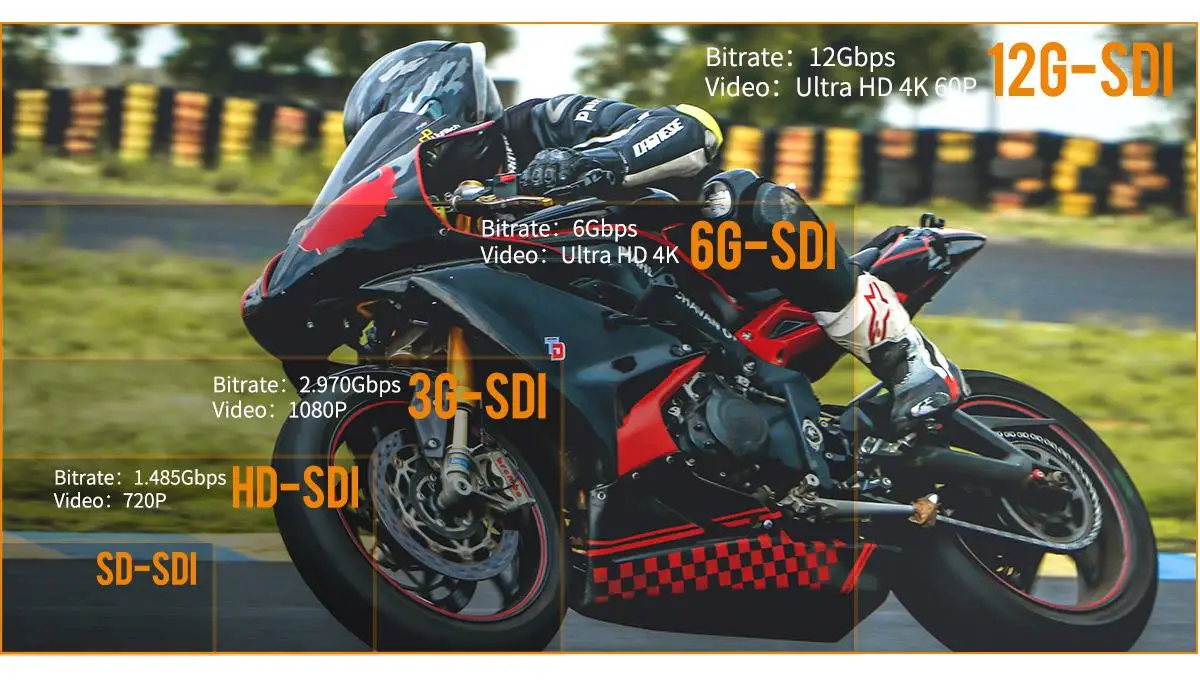

12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.
Professional Broadcast Quality

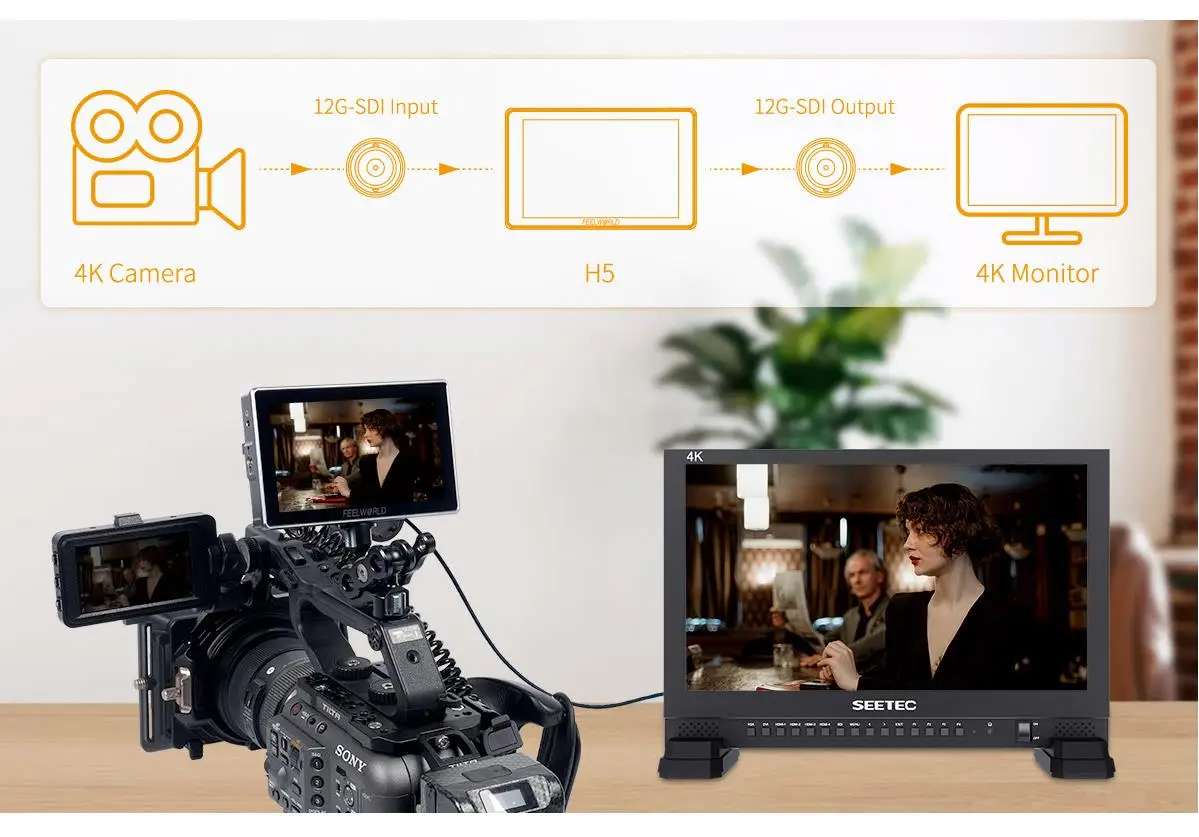

H5 can not only handle handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources, but also simultaneously loop-out high quality broadcast video images, providing you the perfect future proof monitoring solution and bringing the best quality possible and a fluid smooth viewing experience!
Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.Built-in DCI-P3,REC709 color space suitable for different video production workflow.
1200nits, Visible in Sunlight
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
Rugged Aluminium Housing
Adopts CNC aluminium housing, durable and portable, suitable for various shooting environment.

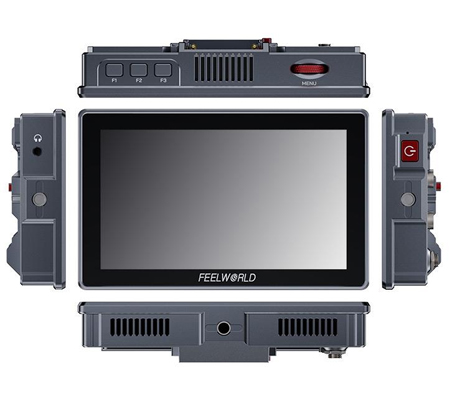

Custom Shortcut Keys
On the top of H5 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Full Range of Auxiliary Functions
Load Custom 3D LUTs?Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. H5 allows you to load internally up to 32 custom LUTs, looks or profiles at any time via USB flash driver and instantly select between them, maintaining creative intent, always.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty?it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

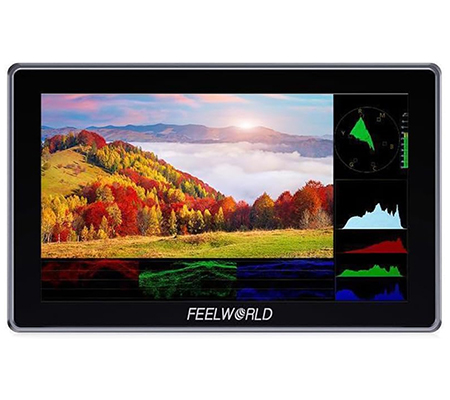

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in the menu. H5 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

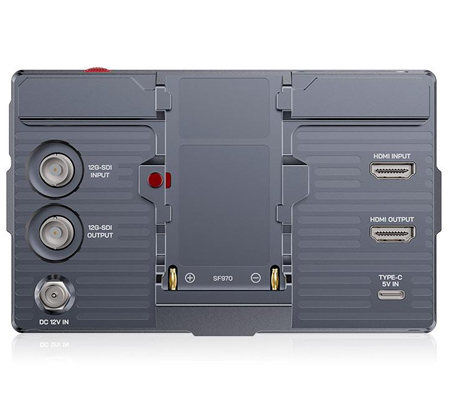

12G-SDI & 4K HDMI Input and Output
Equipped with 12G-SDI and 4K HDMI inputs and outputs, support up to 4096x2160/60fps &3840x2160/60fps signal,provide smoother experience, compatible with professional camcorder and the latest DSLR cameras on the market. 3.5mm headphone jack to monitor audio.
Built-in Cooler
Built-in cooler,and with 5 modes adjustable, don't worry the monitor work for long time.
Power Anywhere
You can connect to DC power input to get continuous power ?suitable for DC 5.5*2.1mm power cable plug,12V/1.5A adapter) or install NP-F series battery on the battery plate which rear of the monitor for mobile application, install one F750 battery (4400mah) last for about 2.7 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).
Note: the battery not including, please purchase separately.
NP-F Battery Optional Recommendation
The power consumption of H5 is 12W,you can choose a suitable optional FEELWORLD NP-F battery to power it according to your shooting needs.
11 Languages Supporting
H5 built-in up to 11 languages, that means H5 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
