Specification :
Wider Coverage, Better Experience Full upgrade to 4K 60Hz input/output, delivers smoother image quality and a more satisfying viewing experience
Realistic View With One Click Switch Supports the latest HDR PQ and HLG curves, richer colors and more natural transitions, making it easy to restore true texture | |
Ultra-High Brightness Adopts an industry-leading 2800 nits ultra-bright | |

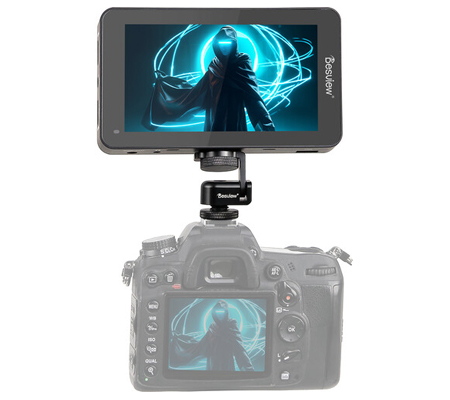

Slight, Yet Exceptional With a screen size of 5.5 inches and a weight of only 240g, it easily breaks through shooting scene restrictions, presenting an efficient | |
Film-Grade Color, Stunning Display 100% DCI-P3 wide color gamut coverage, professional color accuracy, no color deviation restores true colors; 10-bit color depth, displaying more delicate details, feeling the beauty of true colors | |
Operation As Will Intelligent full touch operation, supports arbitrary zooming with two fingers, can confirm any detail in the picture at any time; supports sliding adjustment of screen brightness and volume, making video creation more convenient | |
Lnfinite Creative Style Not only does it come with multiple brand camera restoration LUTS, but it also supports importing custom LUTS, allowing you to define your exclusive creative style at will. | |
Eco-Friendly Ambient Light Sensor Built-in ambient light sensor, resulting in screen brightness automatically changing under different lighting conditions, while providing a comfortable viewing experience, further saving more energy costs | |
Powerful Cooling, Subtle Noise Adopts an active fan cooling system, which can be adjusted at low, medium and high speeds, maintaining a quiet state without affecting the on-site shooting work | |
Power Anywhere Supports NF-P, E6 dual power supply and DC output power supply. A humanized multiple power supply system, bidding farewell to poweranxiety from now on
DC Power Output Supported | |
Complete Monitoring Features Equipped with complete auxiliary shooting functions, including full waveform, color temperature,peak focus, pseudo-color, deformation function, zebra line, still image, and other professional software functions, making shooting simpler |

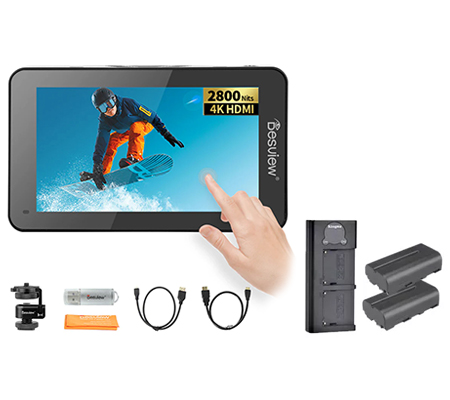

Packing List
Technical | Size: 5.5 inch LCD display screen Net Weight?240g |
Parameter | Pixel Density?401PPi Resolution?Full HD1920*1080 Brightness?2800cd/m2 Viewing Angle?178°?H/V? |

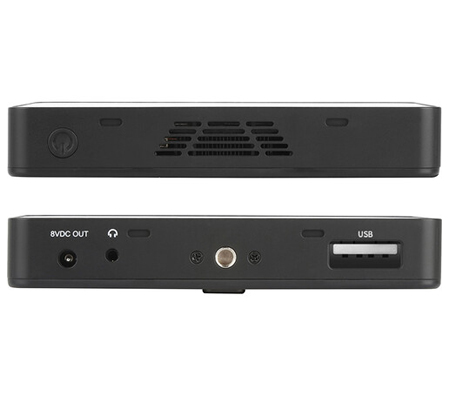

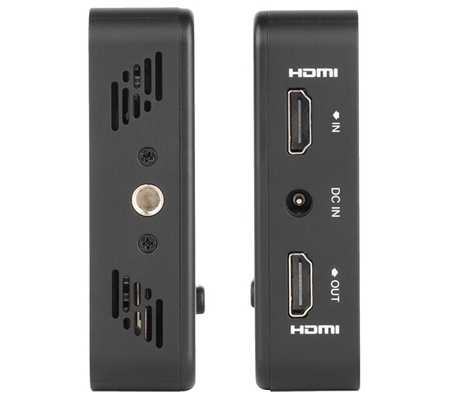

Signal Interface | 1* HDMI 2.0 Input 1*3.5mm Stereo Headphone Jack USB Drive Interface |
HDMI Signal Format | 720x480i&720x480p@59.94, 60Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz 1920x1080p@23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840x2160p@24,25,30Hz,[50,60Hz] 4096x2160p@24Hz,25,29.97,30,[50,59.54,60Hz] |
Voltage | DC Input Voltage?7-24V DC Output Voltage?8V |
Power Consumption | ≤12W / ≤24W(8V DC Power Supply Output) |
