Specification :
Panel Type | IPS-Type LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | Yes |
Maximum Brightness | 2800 cd/m2 |
Contrast Ratio | 1100:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
HDR Compatibility | Yes |
Pixels Per Inch (ppi) | 401 ppi |
Real-Time LUT Monitoring | SDR, HDR |

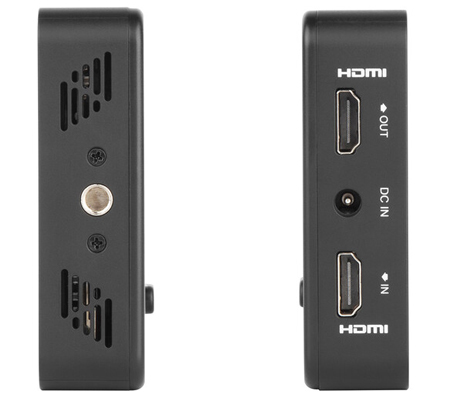

Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power | 1 x Barrel Input |
Other I/O | 1 x Proprietary |
Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
Wi-Fi | None |
Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x LP-E6, L-Series |
Power Consumption | 12 W |
Mounting | 2 x 1/4"-20 Female |
Operating Temperature | 14 to 122°F / -10 to 50°C |
Material of Construction | Plastic, Polycarbonate |
Dimensions | 6 x 3.5 x 1" / 152 x 89 x 25 mm |
Weight | 0.5 lb / 240 g |
Warranty Length | Limited 1-Year Warranty |
Package Weight | 1.23 lb |
Box Dimensions (LxWxH) | 7.2 x 4.8 x 3" |
