Specification :

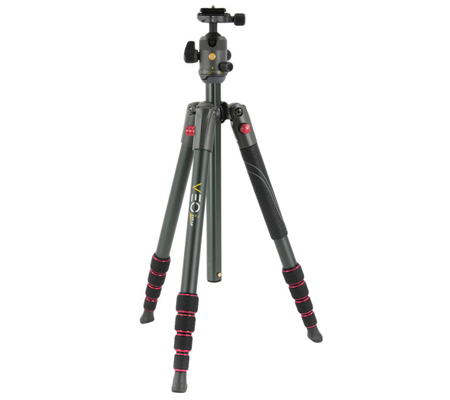

The red-finished 4.75' Vanguard VEO 2 235AB Aluminum Tripod with Ball Head combines the VEO 2 235AB legs with the BH-50 head. Ideal for hiking and nature work, the tripod weighs 3 lb, and has a load capacity of 13.2 lb. It can extend up to 57.1", and folds down to a compact 15.75". The tripod's 5-section legs feature advanced twist locks and individual spread in 20°, 45°, and 80° positions for easy setup on uneven terrain or spreading out as low as 7" for macro photography. The BH-50 has 3 independent dedicated knobs for lock, panning, and friction control. It includes an Arca-type quick release and a compatible camera plate.
| Head Type | Ball Head |
| Quick Release Plate Type | QS-60S |
| Pan & Tilt Range | |
|---|---|
| Lateral Tilt | -90° to +40° |
| Panning Range | 360° |
| General | |
|---|---|
| Load Capacity | 13.2 lb / 6 kg |
| Maximum Working Height | / 145.0 cm |
| Minimum Working Height | 7.0" / 17.8 cm |
| Folded Length | 15.75" / 40 cm |
| Materials | Aluminum Alloy |
| Weight | 3.0 lb / 1.4 kg |
| Legs | |
|---|---|
| Leg Lock Type | Twist Lock |
| Leg Positions | 3 Positions |
| Independent Leg Spread | Yes |
| Leg Sections | 5 |
| Leg Diameter | 0.9" / 23 mm |
| Tripod Feet Features | Rubber |
| Center Column | |
|---|---|
| Center Column Extension Type | Rapid |
| Lateral / 90-Degree Center Column | No |
| Packaging Info | |
|---|---|
| Package Weight | 4.45 lb |
| Box Dimensions (LxWxH) | 17.6 x 4.6 x 4.5" |
