Specification :

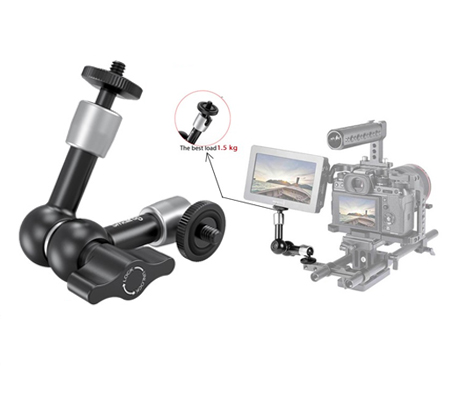

Featuring a ball head at each end, the 5.5" long Articulating Arm from SmallRig can be used to mount a monitor or accessory weighing up to 1.5 kg onto your camera rig at almost any angle.
Compatible with a wide range of camera components such as a monitor, small lights, or sound gear, the aluminum and steel arm features 1/4"-20 screws on either end. Each screw mount features rubber padding to prevent your equipment from twisting and scratching. Both ball heads and the center joint are secured using a large locking lever, and each end features a tightening thumbscrew for easy accessory mounting.
Load Capacity | 3.3 lb / 1.5 kg |
Top Mount | 1/4"-20 Male |
Bottom Mount | 1/4"-20 Male |
Points of Articulation | 3 |
Material of Construction | Aluminum, Steel |
Maximum Length | 5.5" / 14.0 cm |
Width | 2.4" / 6 cm |
Depth | 1" / 2.5 cm |
Weight | 0.4 lb / 168 g |
