Specification :

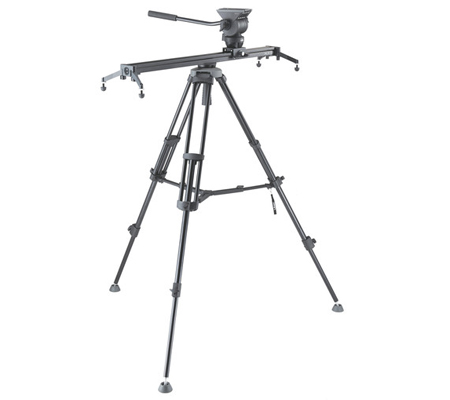

The ALX S8 KIT from Libec is a camera slider system comprising the ALX T 2-stage aluminum tripod, ALX H fluid head, and ALX S8 slider. The slider uses eight roller bearings to provide smooth camera slides, with a maximum travel distance of 28". Thanks to its 75mm ball base with flat bottom, the slider can be mounted directly to the ALX T tripod's 75mm bowl or to a flat base tripod or a fluid head.
The ALX T tripod gives you operating height range of 23.6 to 59" and features a telescoping mid-level spreader for enhanced leg rigidity. The included ALX H fluid head supports loads up to 9 lb and, like the ALX S8 slider, has a hybrid 75mm ball and flat base that allows you to mount it on the tripod or the slider carriage to add pan and tilt movement to your slides. As part of this kit, padded carrying cases are included for both the tripod system and the slider.

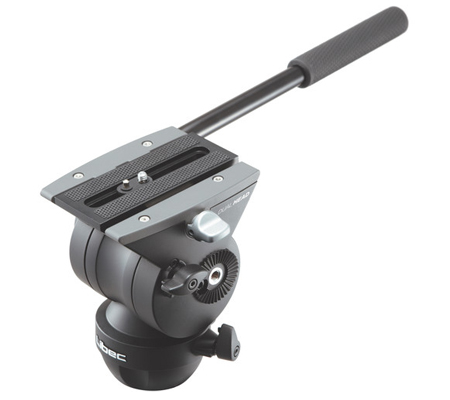

Compatible with both flat and ball-base hardware, the Libec ALX H Fluid Head is a versatile tripod head for video production. The ALX H base features a standard 75mm ball-base with a flattened area containing a standard 3/8"-16 threaded hole for mounting to standard flat-mount hardware found on compact sliders and other grip equipment. The pan and tilt fluid-drag mechanisms are fixed-strength, as is the counterbalance. The head's construction allows for a wide +90° (down)/-80° (up) tilt range. Each axis can be locked down for extra stability during stationary shots. Both sides of the tripod head feature rosettes for attaching the included pan handle on the desired side. The camera connects to the included sliding snap-in plate, which by default holds a 1/4"-20 screw and a guiding pin. A 3/8"-16 screw is included and can be stowed underneath the camera plate when not in use.

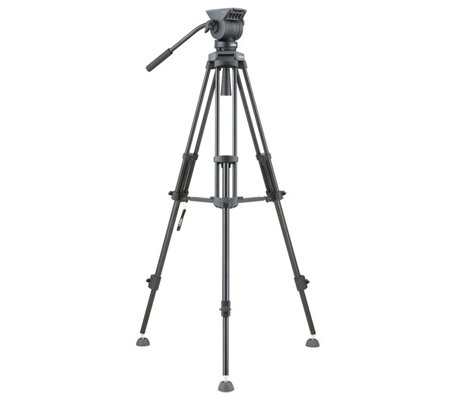

Get the stability you need for your heavy cinema camera kit by using this ALX T Aluminum Tripod with Mid-Level Spreader from Libec. The ALX T can support up to 55 lb and offers a 75mm bowl fitting for holding a wide variety of heads. The standard two-stage legs have a height range of 23.5 to 59", while a telescopic mid-level spreader is available for added stability and fast setup. The tripod also has rubber feet with integrated metal spikes for working on both smooth surfaces and rough outdoor environments. Additionally, it weighs 5.5 lb.

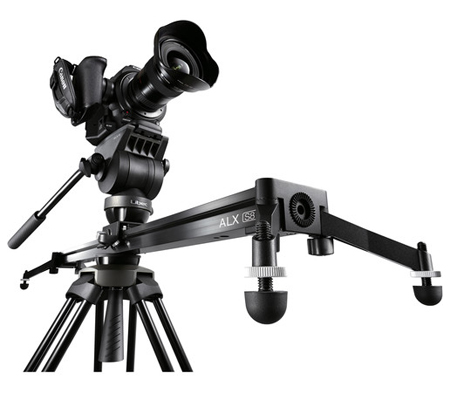

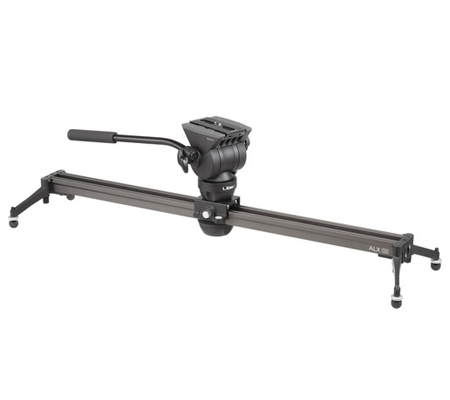

The Libec ALX S8 is a 32.6" long camera slider that features an integrated 75mm ball base with a flat bottom, allowing it to be mounted directly to 75mm bowl fluid heads as well as flat-base heads. When used on tabletop or flat surface using, the slider has a maximum load capacity of 33 lb. For smooth and wobble-free operation, the carriage features eight roller bearings positioned on the rail top and along the sides at angles. A spring-loaded friction knob allows you to adjust slide tension, while a brake knob will lock the carriage in place at any point on the rails. Using a supplied hexagon wrench, you can adjust the pushing force that the ball bearing exerts on the rail.
At each end of the slider, there are 1/4"-20 and 3/8"-16 threads and a rosette for attaching various accessories. If you will be using the slider on the ground or tabletop, the slider features built-in legs with height-adjustable feet to accommodate non-level terrain. For compact storage, the legs fold up against the side of the slider, securing in place using thumb knobs. Unscrewing the knobs completely allows you to detach the legs completely and swap out the 32.6" rail for separately available 15.5" or 47" rail lengths.
Payload | 9 lb / 4 kg |
Camera Plate | Sliding plate |
Sliding Range | 1.6" (+/-40 mm) |
Plate Attachment | 1/4" screw with video pin |
Screw Sliding Range | 3" / 76 mm |
Tilt Angle | +90° / -80° |
Pan Angle | 360° |
Counterbalance | Fixed |
Drag Mode | Fixed |
Tilt Lock | Yes |
Base | 75 mm ball with 3/8"-16-threaded flat base |
Leveling Bubble | Yes (illuminated) |
Weight | 2.9 lb / 1.3 kg |
Packaging Info | |
---|---|
Box Dimensions (LxWxH) | 15.5 x 8.4 x 5.9" |
General | |
---|---|
Load Capacity | 55 lb / 25 kg |
Head Attachment Fitting | 75mm bowl |
Maximum Height | 59" / 150 cm |
Minimum Height | 23.5" / 60 cm |
Weight | 5.5 lb / 2.5 kg |
Legs | |
---|---|
Material | Aluminum |
Leg Stages/Sections | 2/3 |
Leg Lock Type | Twist knobs |
Spreader | Mid-level |
Packaging Info | |
---|---|
Box Dimensions (LxWxH) | 34.5 x 8.0 x 7.0" |
Performance | |
---|---|
Load Capacity | 33 lb / 15 kg |
Travel Distance | 28" / 71.1 cm |
Mounting | |
---|---|
Camera Mounting Screw | 3/8"-16 Male |
Accessory Mounting | 2 x 1/4"-20 Female Thread 2 x 3/8"-16 Female Thread 2 x Rosette |
Tripod Mounting | 75 mm Ball Base 3 x 1/4"-20 Female Thread 3 x 3/8"-16 Female Thread |
Carriage |
---|
Physical | |
---|---|
Body Material | Aluminum, Plastic |
Track Length | 31.5" / 80 cm |
Weight | 4 lb / 1.8 kg |
Packaging Info | |
---|---|
Box Dimensions (LxWxH) | 34.5 x 6.5 x 6.5" |
