Specification :

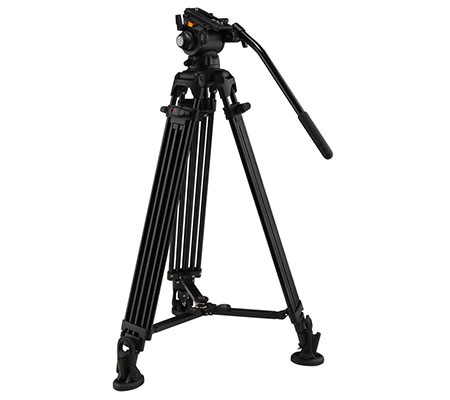

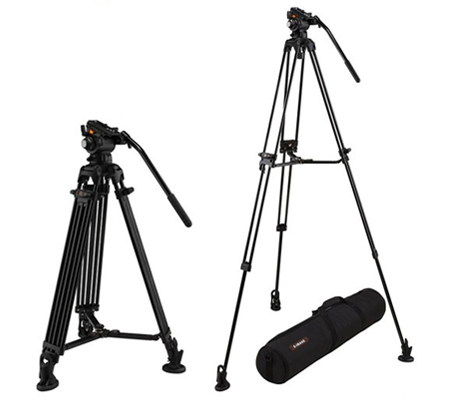

The E-Image 2-Stage Aluminum Tripod with GH03 Head supports cameras and accessories weighing up to 11 pounds. The head and legs feature a 75mm ball/bowl, which provides a wide platform. The legs are made from aluminum and feature three sections with mono-lock leg locks. The mono-lock design allows you to lock and unlock each leg section using only one rotating locking lever. The tripod legs are height-adjustable from 26 to 61".

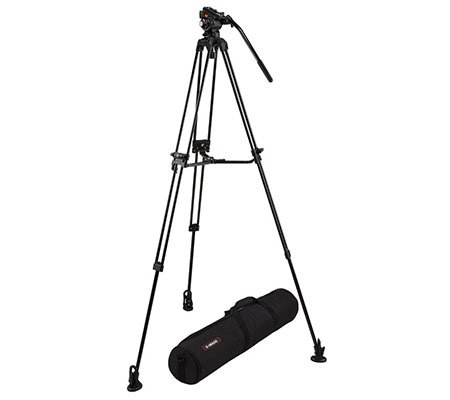

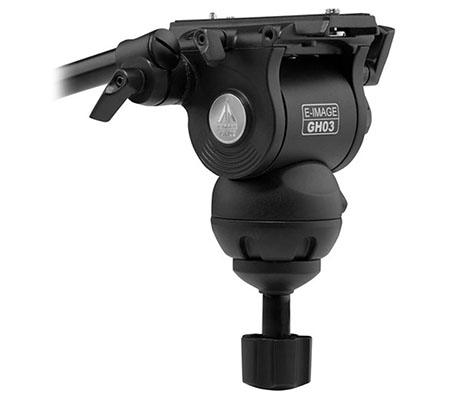

The GH03 head features an Easy Lock baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. Pan drag and counterbalance are both fixed, while tilt drag is adjustable via a dial on the side of the head. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. A padded carry bag with a shoulder strap is included.
Leveling Bubble/Illuminated | Yes/no |
Weight | 16 lb (7.3 kg) |
Load Capacity | 11 lb / 5 kg |
Counter Balance System | Fixed |
Quick Release/Wedge Plate | Easy Lock System |
Balance Plate | Easy Lock |
Tilt Drag | Variable |
Tilt Range | -60 to 90° |
Tilt Lock | Yes |
Pan Lock | Yes |
Load Capacity | 88 lb / 40 kg |
Material | Aluminum |
Head Attachment Fitting | 75 mm bowl |
Minimum Height | 26" (66.0 cm) |
Maximum Height | 61" (155 cm) |
Leg Stages/Sections | 2/3 |
Leg Lock Type | Mono-lock, rotating lever |
Spiked/Retractable Feet | Spiked feet |
Package Weight | 14.5 lb |
Box Dimensions (LxWxH) | 39 x 9 x 8" |
