Sennheiser XSW-D Portable Lavalier Set Microphone System

Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

The Sennheiser XSW-D PORTABLE LAVALIER SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost effective, as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.

The set offers the highly popular ME 2-II omnidirectional lavalier microphone along with a bodypack transmitter and a camera-mount receiver, both featuring lightweight, miniature housings. The system connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.

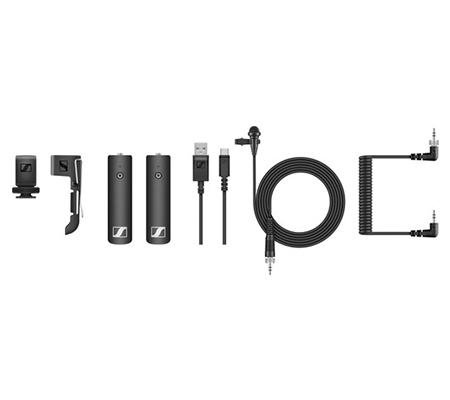

Unboxing the System

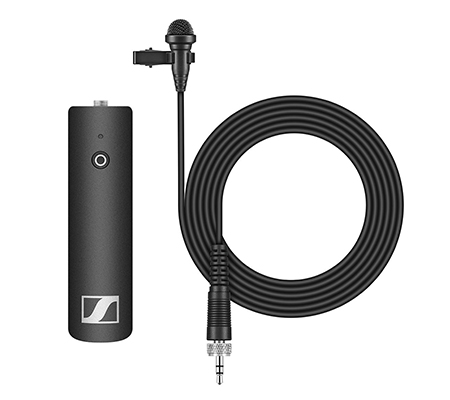

The ME 2-II lavalier microphone clips to your talent's clothing and plugs into the locking 3.5mm input on the bodypack transmitter. The transmitter is designed to only transmit signal from a mic (not from a mixer or recorder).
The exceptionally lightweight and compact transmitter can be easily concealed in a pocket or discreetly attached to the waist with the included belt clip.

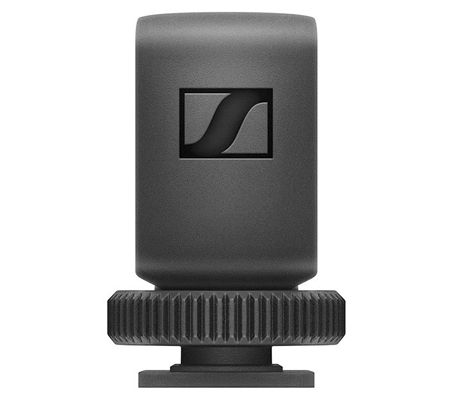

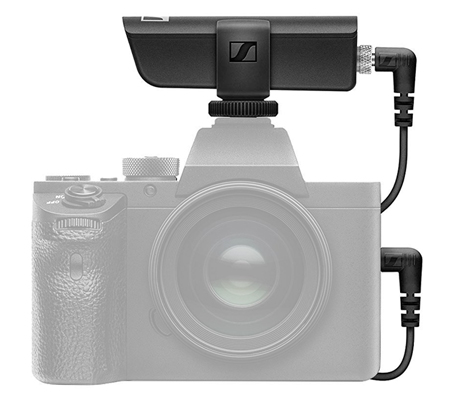

The equally discreet and lightweight receiver mounts to your camera shoemount with the supplied adapter. Connect its 3.5mm output to the 3.5mm audio input of your camera via the included coiled cable.
You're ready to turn it on and get started, it's that easy.

Plug In, Turn On: It Works

The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
The receiver and transmitter are pre-paired at the factory so when you turn on the system, it works—without the need for any additional button pressing.

(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)

Step Up to Sennheiser Sound Quality

Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
The ever-popular ME 2-II lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the talent's head moves away from the mic.

Easy 2.4 GHz Digital Wireless

Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel, providing reliable transmission at a distance up to 250' line of sight.
For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.

Expand Your System as Your Needs Grow

The functionality of this XSW-D PORTABLE LAVALIER SET can easily be expanded by adding XSW-D series transmitters and receivers, as your needs evolve.
With this set, adding the XSW-D XLR FEMALE TX plug-on transmitter allows you to connect a dynamic handheld microphone for man-on-the-street-style interviews, or a self-powered shotgun mic for booming.
For clearer speech in noisy environments, you can substitute the included lav mic with a Sennheiser-compatible headset mic.

License-Free Operation Worldwide

Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
Simply let the system pick a channel for you and start recording, whether you're working at home or anywhere in the world.

Other Features

Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of shooting time
Conveniently recharge batteries via USB while in operation or during breaks throughout the day
Up to five systems can be operated simultaneously in the same environment
Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
Mute from either transmitter or receiver
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

System

Wireless Transmission	Digital 2.4 GHz
Included Transmitters	1 x Bodypack
Diversity	TDMA
RF Frequency Band	2400 to 2483.5 MHz
Max Operating Range	250' / 76.2 m (Line of Sight)
Max Systems per Setup	5
Audio Codec	APT-X Live
Latency	<4 ms
Encryption	None
Modulation	GFSK

Receiver

Form Factor	Camera-Mount
Mounting Options	Shoe-Mount (with Included Hardware)
Antenna	1 x Internal
Number of Audio Channels	1
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
Audio Output Level	12 dB (Consumer Level)
Frequency Response	80 Hz to 18 kHz
USB/Lightning Connectivity	1 x USB Type-C (Bus Power, Charging)
Power Requirements	Battery, Bus Power (USB)
Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity	850 mAh
Battery Charging Time	3 Hours
Approx. Battery Life	5 Hours (Lithium Rechargeable)
Battery Cycle Count	Up to 1000 Cycles
Display & Indicators	1 x LED (Battery Status, Mute, RF Level)
Housing	Plastic
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	95%
Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

Transmitter

Form Factor	Bodypack
RF Output Power	10 mW
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting	Off/On Switch
Audio Input Level	(Mic Level)
Frequency Response	80 Hz to 18 kHz
Antenna	1 x Internal
Power Requirements	Battery, Bus Power (USB)
Battery Type	1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity	850 mAh
Battery Charging Time	3 Hours
Approx. Battery Life	5 Hours (Lithium Rechargeable)
Battery Cycle Count	Up to 1000 Cycles
USB/Lightning Connectivity	1 x USB Type-C (Bus Power, Charging)
Display & Indicators	1 x LED (Battery Status, Mute, Signal Strength)
Housing	Plastic
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	95%
Dimensions	1.1 x 3.4 x 0.9" / 28.0 x 86.0 x 24.0 mm

Microphone

Form Factor	Lavalier
Sound Field	Mono
Transducer	Electret Condenser
Polar Pattern	Omnidirectional
Frequency Range	50 Hz to 18 kHz
Equivalent Noise Level	36 dB
Maximum SPL	130 dB SPL Peak
Sensitivity	20 mV/Pa
Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length	5.25' / 1.6 m
Operating Voltage	7.5 V

Packaging Info

Package Weight	0.8 lb
Box Dimensions (LxWxH)	9.8 x 4.8 x 0.79"
