Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras

Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras

Rp 1.590.000 Warranty: 1 Tahun Saramonic Indonesia

Specification :

Combine Two Mics to One Stereo Output
Sum a Stereo Input to a Mono Output
Supplies Phantom Power
3.5mm (1/8") and XLR Inputs
Include :
1x Saramonic SR-PAX2 Active 2-Channel Audio Adapter for DSLR Cameras
1x 1/8" (3.5mm) Audio Cable
1x Limited 1-Year Warranty

Ingin cicilan 0% ? Silahkan klik :

Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

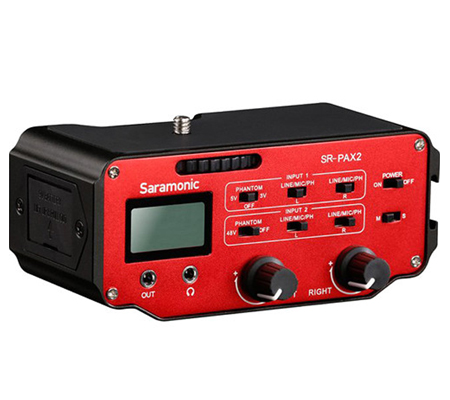

The SR-PAX2 from Saramonic is an active 2-channel audio adapter designed to provide a compact solution for recording two signals to any DSLR or camcorder that has a standard mounting base, and a built-in audio jack. It features left and right gain controls and meters, supplies phantom power, and is powered by a 9V battery (available separately).

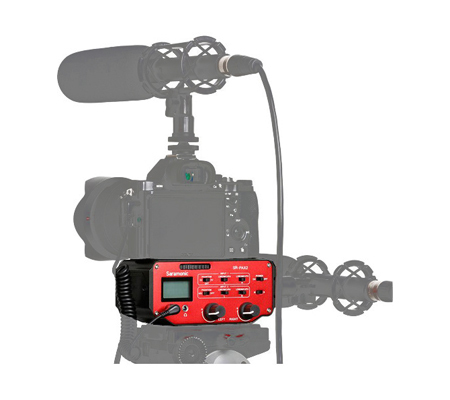

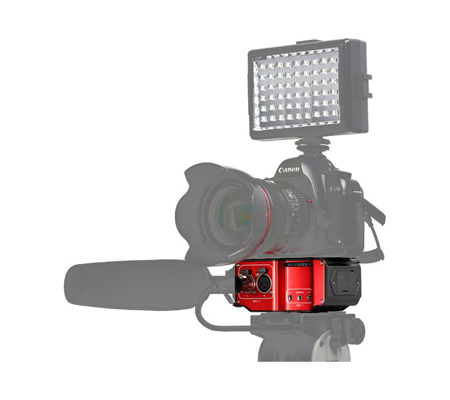

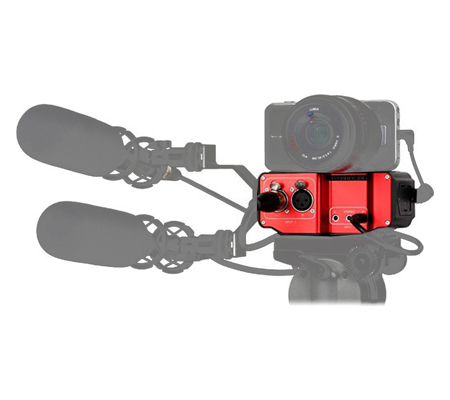

It attaches to the base of a camera, and can be mounted on a tripod or case. Connect inputs via two mono 3.5mm (1/8") jacks, the single stereo 3.5mm (1/8") jack, or two XLR jacks. Route the stereo 3.5mm (1/8") output to your DSLR or camcorder. The output can be set to mono or stereo via the M/S switch. A dedicated stereo 3.5mm (1.8") headphone output allows quick monitoring of the mic signals.

Two 1/8" (3.5 mm) stereo line/mic inputs
Two XLR microphone inputs
One 1/8" (3.5mm) stereo line output to phone
One 1/8" (3.5mm) headphone monitor output
Volume control knob
Independent input control switch
Independent L/R level meters
Independent phantom power control for inputs
Includes 3.5mm audio cable

Saramonic SR-PAX2

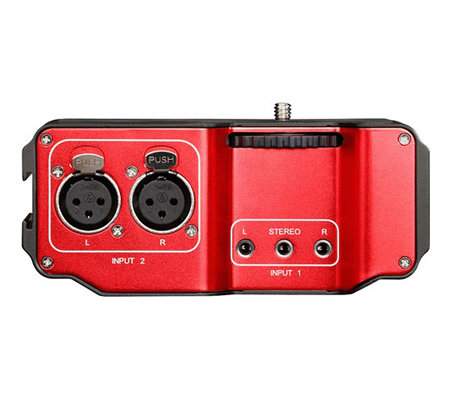

Inputs	2 x XLR 3-pin 3 x 1/8" (3.5 mm) mini jacks (one stereo, two mono)
Outputs	1 x 1/8" (3.5 mm) mini jack for stereo line output 1 x 1/8" (3.5 mm) mini jack for headphone output
Frequency Response	20 Hz to 20 kHz, ±0.5 dB
THD	Less than 0.01% @ 1 kHz, -30 dBu input
SNR	80 dB @ 1 kHz, -30 dBu input
Input Gain	Input 1: Line: 0 dB Mic/Phone: 20 dB Input 2: Line: 0 dB Mic/Phone: 20 dB
Phantom Power	Input 1: 5 V / 3 V power supply Input 2: 48 V power supply
Level Meters	-18 dB to +3 dB in 3 dB increments
Power Requirements	9 V alkaline or lithium battery
Battery Duration	5 hours, typical with alkaline battery 3 hours, typical with lithium battery
Dimensions (L x W x H)	5.4 x 3.2 x 2.5" / 136.0 x 80.5 x 62.5 mm
Weight	13.5 oz / 382.7 g
