Specification :
Disclaimer : Pabrik dapat sewaktu-waktu mengubah kelengkapan ini, dan mungkin saja menyebabkan perbedaan antara yg tercantum di atas dengan content yg Anda terima sewaktu Anda membelinya.

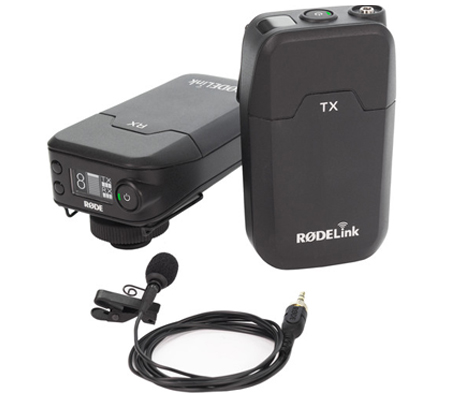

The RodeLink Filmmaker Kit from Rode is a wireless system for film and video production that features a transmitter, receiver, and an included lavalier microphone. The system utilizes a Series II 2.4 GHz 128-bit encrypted digital transmission signal that constantly monitors and hops between frequencies to select the strongest signal. The kit offers a high signal-to-noise ratio and provides a high-resolution 24-bit 44.1 kHz digital transmission of lossless audio at a range of up to 328 ft. Up to 8 systems can be used together simultaneously.

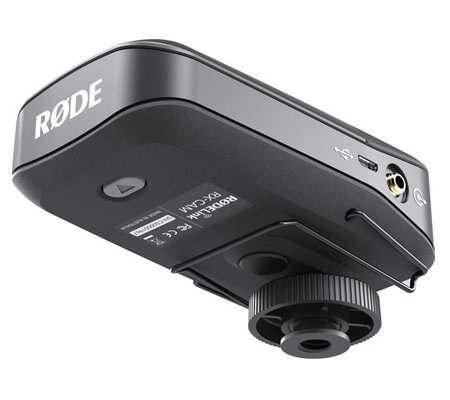

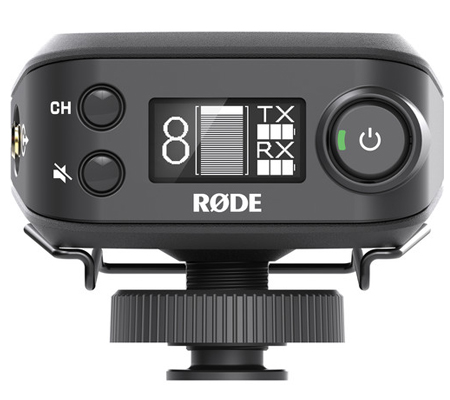

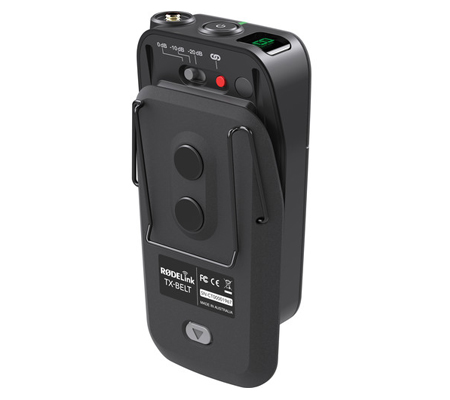

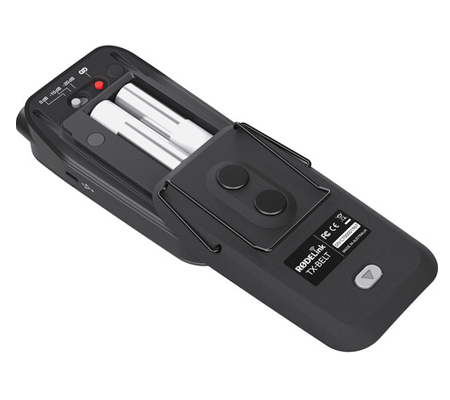

The beltpack transmitter features a simple 3-stage gain adjustment and a mute lock function to prevent accidental muting. A locking 3.5mm input audio connector ensures body worn microphones remain secure. The camera mount receiver features a removable shoe mount enabling it to be used on camera or as a belt pack receiver. A mute override function gives complete control to the operator, while mute status, input level, and battery status for both the transmitter and receiver are displayed on the front of the unit. The receiver also utilizes the same locking 3.5mm connector as the transmitter to provide solid security.
Both the beltpack transmitter and camera mount receiver can be powered by any USB power source using a standard micro-USB cable. The system offers eight discrete channels that can easily be set up in seconds with over 8000 different channel combinations available. Channel selection and pairing is achieved with a one-press operation and automatic scanning, which significantly reduces setup times when compared to traditional UHF setups.
General Specifications | |
---|---|
Transmission Type | 2.4 GHz fixed frequency agile system |
Dynamic Range | 112 dB |
Range | 328 ft (100 m) |
Frequency Range | 35 Hz to 22 kHz |
Maximum Output Level | 1 Vrms (2.8 V, peak to peak) |
Maximum Input Sound Level | 1 Vrms (2.8 V, peak to peak) |
Latency | Maximum Latency: 4 ms |
Receiver | |
---|---|
Power Source | 2 x AA battery and micro-USB |
Antenna | Internal |
Output Connection | 3.5 mm TRS jack socket (dual mono with thread lock) |
Output Impedance | 300 ohms |
Transmitter | |
---|---|
Power Source | 2 x AA battery and micro-USB |
Antenna | Internal |
Input Connection Type | 3.5 mm TRS jack socket (with thread lock) |
Input Impedance | 10 kOhms |
Lavalier Microphone Specs | |
---|---|
Acoustic Principle | Pressure gradient |
Active Electronics | JFET impedance converter |
Capsule | 0.1" / 2.5 mm |
Polar Pattern | Omnidirectional |
Frequency Response | 60 Hz to 18 kHz |
Output Impedance | 3 kOhms |
Max SPL Level | 110 dB SPL (@ 1 kHz, 1% THD into 1 ohm load) |
Maximum Output Level | 189 dBu (@ 1 kHz, 1% THD into 1 kOhm load) |
Sensitivity | -33.5 dB, 1 V/Pascal (21.00 mV @ 94 dB SPL) ±2 dB @ 1 kHz |
Equivalent Noise Level | 25 dB-A (A-weighted) |
Physical Dimensions | |
---|---|
Dimensions (H x W x D) | Receiver: 4.4 x 2.6 x 2.0" / 11.1 x 6.5 x 5.2 cm Transmitter: 4.4 x 2.6 x 1.6" / 11.1 x 6.5 x 4.0 cm Lavalier: 47.2 x 0.2 x 0.2" / 120.0 x 0.5 x 0.5 cm |
Weight | Receiver: 6.7 oz / 190.0 g Transmitter: 6.7 oz / 190.0 g Lavalier: 0.04 oz / 1.00 g |
Packaging Info | |
---|---|
Package Weight | 1.25 lb |
Box Dimensions (LxWxH) | 7.1 x 5.3 x 5.1" |
