Specification :
Designed for close distances, the 40mm f/2.8 Macro from TTArtisan is a 60mm-equivalent macro prime offering a 1:1 life-size maximum magnification along with a 6.7" minimum focusing distance. Benefitting both close-up shooting as well as working at greater distances, the optical design uses 8 elements in 7 groups to maintain consistent image quality and sharpness throughout the focusing range. The 40mm f/2.8 has a manual focus design and an 11-blade diaphragm that contributes to a smooth bokeh quality, making it an excellent portrait lens.
| Focal Length | 40mm (35mm Equivalent Focal Length: 60mm) |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/16 |
| Lens Mount | Leica L |
| Lens Format Coverage | APS-C |
| Angle of View | 40° |
| Tilt-Shift | Not Specified by Manufacturer |
| Minimum Focus Distance | 6.7" / 17 cm |
| Maximum Magnification | 1x |
| Macro Reproduction Ratio | 1:1 |
| Optical Design | 8 Elements in 7 Groups |
| Diaphragm Blades | 11 |
| Focus Type | Manual Focus |
| Image Stabilization | No |
| Filter Size | 52 mm (Front) |

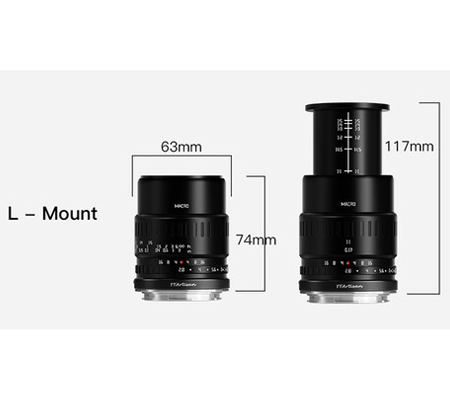

| Dimensions (ø x L) | 2.4 x 3" / 62 x 76 mm |

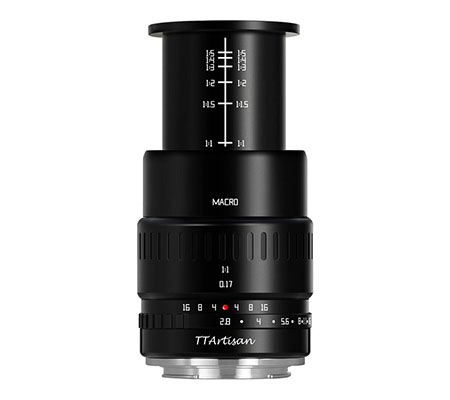

| Length at Maximum Extension | 4.7" / 119 mm |
| Weight | 13.1 oz / 371 g |
| Package Weight | 1.17 lb |
| Box Dimensions (LxWxH) | 4.95 x 4.2 x 3.05" |
