FEATURES

Image of a person holding the E PZ 10-20mm F4 G, showing that the lens is small enough to fit in their hand

Compact, expressive 10-20 mm F4 power zoom

At just 178 grams this is the world’s smallest, lightest ultra-wide-angle 10-20 mm (35mm full-frame equivalent: 15-30 mm) power zoom lens for APS-C cameras , offering class-leading mobility as well as outstanding handling and control. A constant F4 maximum aperture allows the use of practical shutter speeds even when shooting in low light.

Image showing that multiple people can fit in the frame, even when shooting a selfie

Dynamic ultra-wide-angle images

A 10 mm focal length (35mm full-frame equivalent: 15 mm) at the wide end of the zoom range provides extremely wide angles of view. This versatile lens can deliver impressive, dynamic images utilizing unique perspectives that effectively separate the subject from the background, and emphasize distance or speed in movies.

Image of a building interior, with high-definition details

Excellent G Lens resolution

Three aspherical elements effectively suppress field curvature and astigmatism that can be problematic in wide angle lenses, while an ED (Extra-low Dispersion) aspherical element contributes to outstanding image-wide resolution throughout the 10 to 20 mm zoom range (35mm full-frame equivalent: 15 to 30 mm).

Image of sunlight filtering through trees, with chromatic aberration suppressed

Fine optics with minimal aberration

This remarkably compact lens includes an ED (Extra-low Dispersion) aspherical element and two ED glass elements that subdue chromatic aberration throughout the image area, achieving natural color and high contrast without color bleeding.

Close-up image taken with the E PZ 10-20mm F4 G, with sharp focus on an object in front that gradually blurs towards the background

Outstanding close-up performance

The use of aspherical elements in an advanced optical design also ensures excellent close-up performance throughout the lens’s zoom range. Minimum autofocus distance is 0.2 meters with a maximum magnification of 0.14x, while minimum manual focus distance is 0.13 ~ 0.17 meters with a maximum magnification of 0.18x.

Responsive new power zoom system

A new electronic power zoom system instantly converts zoom ring control to actual zoom operation so that the creator’s intent is faithfully captured. Precise changes in angle of view can be easily produced and reproduced as needed, providing extra capability for visual expression.

Image of a woman shooting a vlog while operating the zoom control with a grip

Lever-controlled power zoom expression

A zoom lever with continuously variable zoom speed makes it easy to execute super-slow constant-speed zooms and perform other operations that are difficult with manual zoom. Power zoom minimizes camera shake that can occur when operating a zoom ring so that even solo shooters can produce smooth, stable imagery.

Remote zoom control

In addition to the zoom controls built into the lens, zoom can be controlled from assignable buttons and controls on compatible camera bodies, accessory grips, or remote commanders for convenient, versatile operation in a variety of situations.

Image of the E PZ 10-20mm F4 G attached to a camera on a gimbal, where the setup is well balanced because the length of the lens does not change

Internal zoom and focus for great handling

Internal zoom and focus mechanisms ensure that the lens does not change in length when zooming or focusing. Shifts in the lens’s center of gravity are minimal, making it a great choice for stable vlogging and gimbal-mounted movie shooting.

Image of a standing woman, showing depth of field

Designed for sophisticated movie imagery

Advanced lens technology reduces focus breathing as well as focus and axial shift when zooming so that high quality images can be easily captured. This lens also supports the breathing compensation function provided in compatible α series bodies, further reducing unwanted angle of view shifts during focusing for smooth, high-quality movie footage.

Illustration of product, showing the focus ring being turned and an arrow symbol

Linear Response MF

Linear Response MF ensures that the focus ring responds directly and linearly to subtle control when focusing manually. Focus ring rotation translates directly to a corresponding change in focus, so control feels immediate and precise enough for rack focus effects when shooting movies.

Illustration showing dual-linear motor construction of the autofocus system

Extraordinary AF for stills and movies?

Two linear motors ensure fast, quiet, low vibration autofocus that can smoothly track subjects when shooting high frame rate movies and reliably follow fast-moving subjects when shooting stills continuously at high speed. Focus is especially critical when shooting 4K or 8K movies, and this lens handles it with ease.

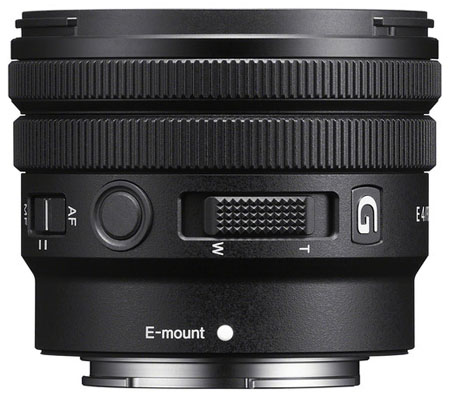

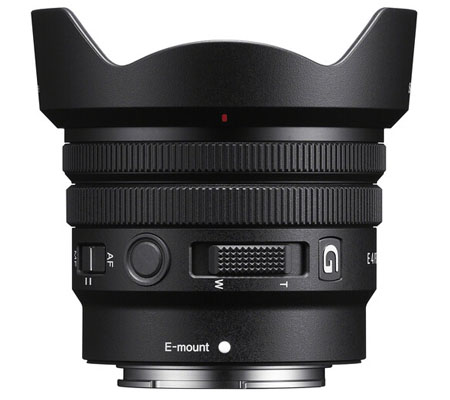

Product image showing focusing ring, zoom ring and zoom lever

Superb control in a compact lens

Within a remarkably compact design this lens features a focusing ring, zoom ring, and zoom lever that maximize control and versatility for movies as well as stills. The adjacent focus and zoom rings are stepped so they can be easily differentiated and operated by feel while viewing the monitor.brbr[1] Focusing ring [2] Zoom ring [3] Zoom lever

Product image showing the position of the focus hold button on the lens

Customizable focus hold button

A customizable focus hold button is provided for easy access and convenient control in just about any shooting situation. Other functions can be assigned to the focus hold button from the body menus.

Product image showing the position of the focus mode switch on the lens

Focus mode switch for fast AF/MF switching

A focus mode switch right on the lens makes it possible to switch between autofocus and manual focus on the fly, to adapt to changing shooting conditions.

Product image illustrating the lens' dust- and moisture-resistant construction

Dust and moisture resistant design

A dust and moisture resistant design provides extra reliability for outdoor use in challenging conditions

Lens Specifications

MOUNT: Sony E-mount
FORMAT: APS-C
FOCAL-LENGTH (MM): 10-20
FOCAL LENGTH (35MM) (APS-C): 15-30
LENS GROUPS / ELEMENTS: 8-11
ANGLE OF VIEW (APS-C): 109°-70°
MAXIMUM APERTURE (F): 4
MINIMUM APERTURE (F): 22
APERTURE BLADES: 7

CIRCULAR APERTURE: Yes
MINIMUM FOCUS DISTANCE: 0.20 m (AF), Wide: 0.13 m / Tele: 0.17 m (MF) ((0.66 ft (AF), Wide: 0.43ft / Tele: 0.56 ft (MF))
MAXIMUM MAGNIFICATION RATIO (X): 0.14(AF),0.18(MF)
FILTER DIAMETER (MM): 62
IMAGE STABILIZATION (STEADYSHOT): - (body-integrated)
ZOOM SYSTEM: Powered
TELECONVERTER COMPATIBILITY (X1.4): -
TELECONVERTER COMPATIBILITY (X2.0): -
HOOD TYPE: Petal shape, bayonet type
