Specification :
Samyang announces a new lineup of lenses optimized for video content creators according to their needs. The new V-AF lineup is the world's first lens for video creators designed to make video content creation more convenient. Meet the new V-AF lineup custom-designed for videography.
Unified Form Factor – Compact & Light
The V-AF increases compatibility with gimbals and drones by applying the unified form factors with its 5 different focal lengths (Ultra-Wide to Tele). By providing a compact size of 73 X 70mm and a light-weight of less than 300g, there is no need to re-set the equipment when changing the lenses.
LED Indicator (Tally Lamp) - Excellent usability
The lamp located on the front and mount index helps the user to check whether a video is recorded or not while shooting. It supports video content creation more conveniently even in a small space without a lot of equipment.
Support 8K and the same color tone
The new V-AF series supports resolutions up to 8K in a small and lightweight form, which is well suited for use with handheld gimbals and drones, as well as for studios and location productions. All lenses within the new V-AF series are color-matched to avoid shifts when swapping lenses, and the 9 aperture blades allow for a natural-looking bokeh.

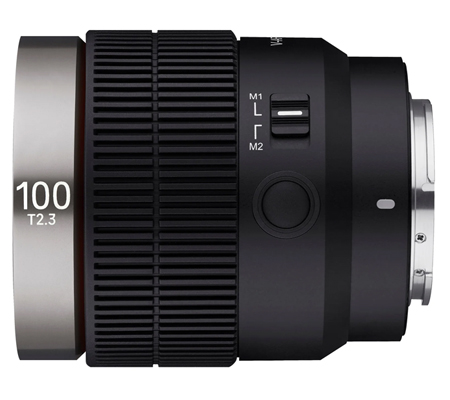

Custom Switch & Button
Features the 'Focus save' function usually in professional cine equipment and custom mode that adds function by firmware, which provides video-specific functions for students and amateur users who dream of cinematographers.
| Model Name | V-AF 20mm T1.9 | V-AF 24mm T1.9 | V-AF 35mm T1.9 | V-AF 45mm T1.9 | V-AF 75mm T1.9 | V-AF 100mm T2.3 | |
| Maximum T-stop | T1.9 | T1.9 | T1.9 | T1.9 | T1.9 | T2.3 | |
| Image Circle | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | |
| Angle of View | Full Frame | T.B.D | 83.7° | 63.6° | 52.3° | 32.9° | 25.4° |
| Super 35 | T.B.D | 60.9° | 43.8° | 35.3° | 21.9° | 16.9° | |
| Focusing Range | T.B.D | ∞ to 0.19 m | ∞ to 0.29 m | ∞ to 0.35 m | ∞ to 0.69 m | ∞ to 0.70 m | |
| T.B.D | ∞ to 0.62 ft. | ∞ to 0.95 ft. | ∞ to 1.15 ft. | ∞ to 2.26 ft. | ∞ to 2.30 ft. | ||
| Focus Breathing (∞ to 1 m) | T.B.D | 0.7% | 3.1% | 5.5% | 11.7% | 13.0% | |
| Front Diameter | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | Ø 70 mm | |
| Filter Diameter | Ø 58 mm | Ø 58 mm | Ø 58 mm | Ø 58 mm | Ø 58 mm | Ø 58 mm | |
| Number of Aperture Blades | 9 | 9 | 9 | 9 | 9 | 9 | |
| Weather Sealing | Yes | Yes | Yes | Yes | Yes | Yes | |
| Custom Mode Switch | Yes | Yes | Yes | Yes | Yes | Yes | |
| Focus Hold Button | Yes | Yes | Yes | Yes | Yes | Yes | |
| Rotation Angle of Aperture Ring | 300° | 300° | 300° | 300° | 300° | 300° | |
| Size | T.B.D | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 72.1 mm | Ø72.2 x 86.5 mm | |
| Weight (without Lens cap) | T.B.D | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | 0.28 kg / 0.6 lbs. | |
