Specification :

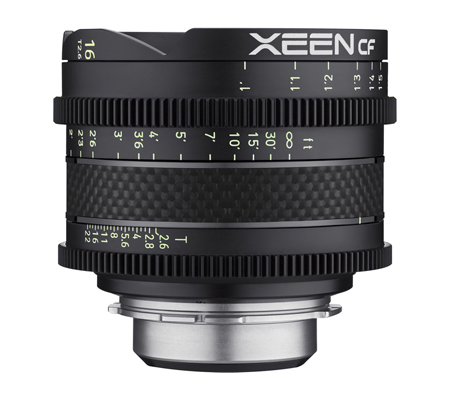

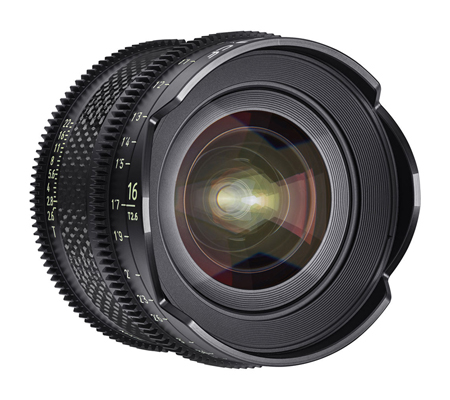

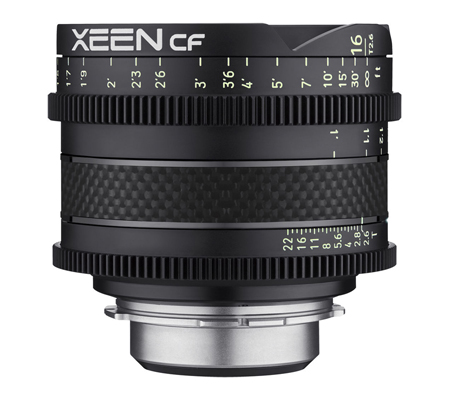

Model Name | XEEN CF 16mm T2.6 | XEEN CF 24mm T1.5 | XEEN CF 35mm T1.5 | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Maximum T-stop | T2.6 | T1.5 | T1.5 | |||||||
Image Circle | Ø 43.3mm | Ø 43.3mm | Ø 43.3mm | |||||||
Angle of View | Full Frame | 107.0° | 84.1° | 63.1° | ||||||
Super 35 | 87.4° | 61.2° | 46.9° | |||||||
Focusing Range | ∞ to 0.30 m | ∞ to 0.25 m | ∞ to 0.33 m | |||||||
∞ to 1’ ft | ∞ to 10” ft | ∞ to 1’ 1” ft | ||||||||
Front Diameter | Ø 95 mm | Ø 95 mm | Ø 95 mm | |||||||
Number of Aperture Blades | 11 | 11 | 11 | |||||||
Rotation Angle of Focus Ring | 200° | 200° | 200° | |||||||
Rotation Angle of Aperture Ring | 32.5° | 40° | 40° | |||||||

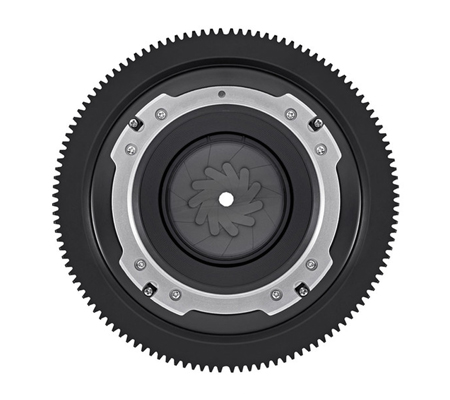

Mount | PL | Canon EF | Sony E | PL | Canon EF | Sony E | PL | Canon EF | Sony E | |
Size | Ø100.0 x 82.3 mm | Ø100.0 x 90.3 mm | Ø100.0 x 116.3 mm | Ø100.0 x 90.5 mm | Ø100.0 x 98.5 mm | Ø100.0 x 124.5 mm | Ø100.0 x 113.7 mm | Ø100.0 x 121.7 mm | Ø100.0 x 147.7 mm | |
Weight (without Lens cap) | 0.9 kg / 2.0 lbs | 0.9 kg / 2.0 lbs | 1.0 kg / 2.2 lbs |
