Specification :

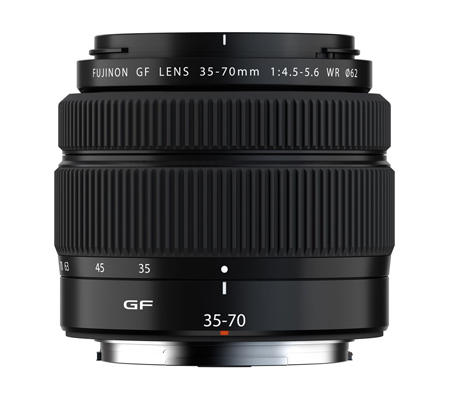

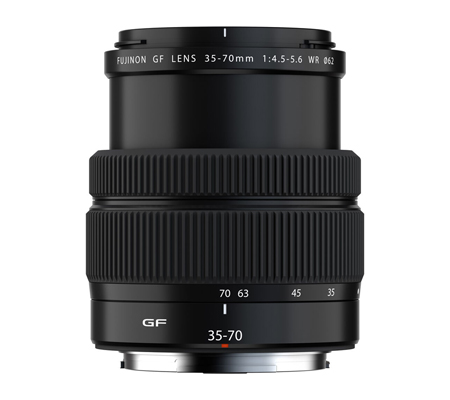

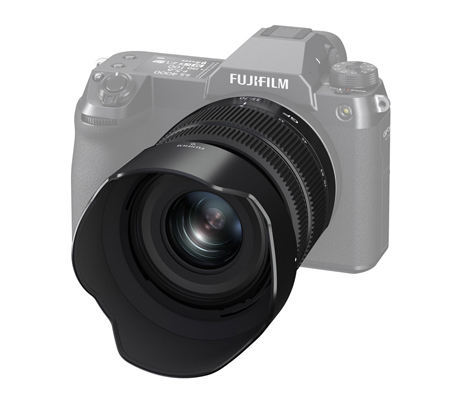

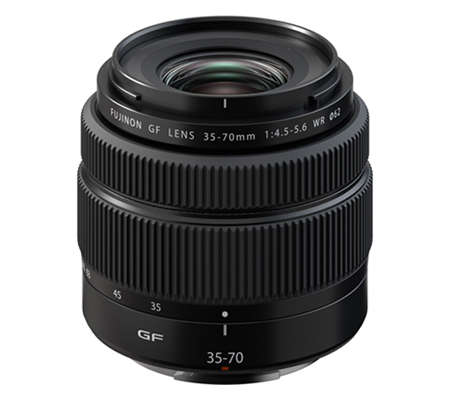

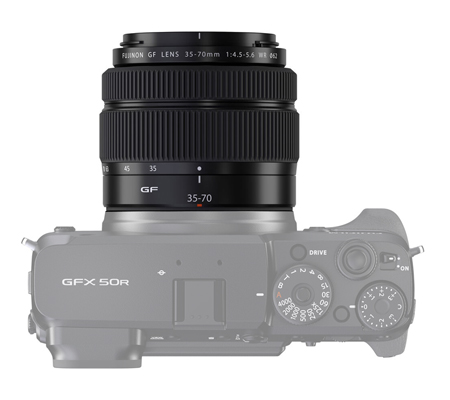

Designed for the FUJIFILM G-mount GFX camera system, this GF 35-70mm f/4.5-5.6 WR Lens is a wide-angle zoom offering a 28-55mm equivalent focal length range. Covering wide-angle to normal-length perspectives, this zoom is well-suited to everyday shooting applications. Weighing less than a pound and offering a closed length of under 3", this compact and portable lens is engineered to produce images or video with incredible detail and minimal focus breathing, providing the perfect gateway to the capabilities and possibilities of the large format GFX System. Expansive landscapes, delicate portraits, and gritty documentaries are all within reach in the hands of the right storyteller. Additionally, the lens also features a dust-, freeze-, and weather-resistant design for use in inclement conditions.
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
| Type | GF35-70mmF4.5-5.6 WR | |
| Lens configuration | 11 elements in 9 groups (includes 1 aspherical and 2 ED elements) | |
| Focal length | f=35-70mm(28-55mm) | |
| Angle of view | 76°-42.7° | |
| Max. aperture | F4.5-5.6 | |
| Min. aperture | F32 | |
| Aperture control | ||
| Number of blades | 9(rounded diaphragm opening) | |
| Step size | 1/3EV(Wide:18steps, Tele:16steps) | |
| Focus range | 35cm-∞ | |
| Max. magnification | [T] 0.28x | |
| External dimensions : Diameter x Length*1 (approx.) | Ø84.9mm x 73.9mm(Collapsed position) | |
| Weight*2 (approx.) | 390g | |
| Filter size | Ø62mm | |
| Accessories included | Lens Cap FLCP-62 II Lens rear cap RLCP-002 Lens hood Lens pouch | |
