Specification :

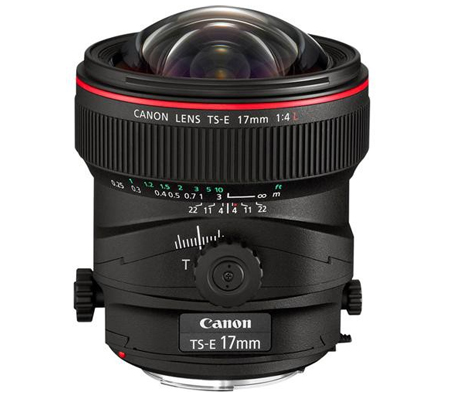

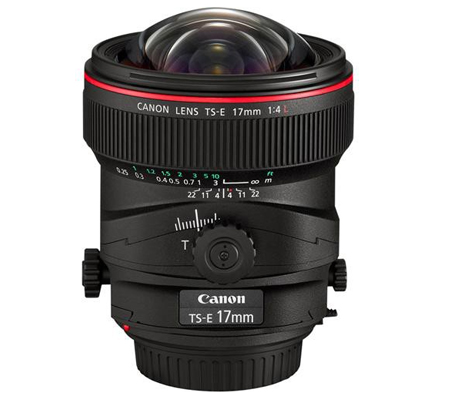

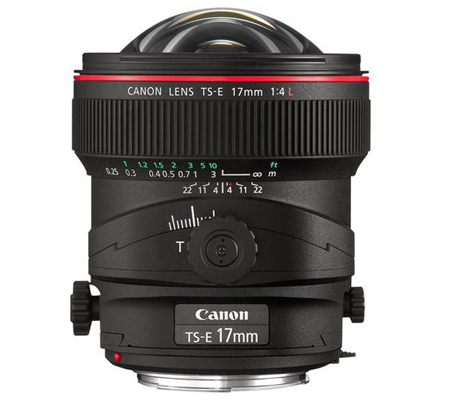

Presenting an ultra-wide field of view with advanced perspective and focus control, the TS-E 17mm f/4L is a Canon L-series tilt-shift lens well-suited to architecture and interior photography. Up to +/- 6.5° of tilt is possible, for focus control, and +/- 12mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability.
Complementing the operation of the lens, this L-series prime is also distinguished by its optical design that features four of Ultra-Low Dispersion elements to significantly reduce color fringing and chromatic aberrations as well as one aspherical element to minimize spherical aberrations and distortion. Individual elements also feature a Subwavelength Coating to suppress flare and ghosting for greater contrast and color neutrality. Additionally, a floating optical system and a rear focus design help to maintain consistent image quality throughout the focusing range, from 9.8" to infinity.
Performance | |
---|---|
Focal Length | 17mm |
Aperture | Maximum: f/4 Minimum: f/22 |
Camera Mount Type | Canon EF |
Format Compatibility | 35mm Film / Full-Frame Digital Sensor |
Angle of View | 104° |
Tilt/Shift | Tilt ± 6.5° Shifts ± 12mm |
Minimum Focus Distance | 9.84" / 25 cm |
Magnification | 0.14x |
Maximum Reproduction Ratio | 1:7.1 |
Optical Design | 18 Elements in 12 Groups |
Diaphragm Blades | 8, Rounded |
Features | |
---|---|
Autofocus | No |
Physical | |
---|---|
Filter Thread | None |
Dimensions (DxL) | Approx. 3.50 x 4.21" / 88.9 x 106.9 mm |
Weight | 1.80 lb / 820 g |
Packaging Info | |
---|---|
Package Weight | 2.6 lb |
Box Dimensions (LxWxH) | 8.189 x 5.512 x 5.354" |
