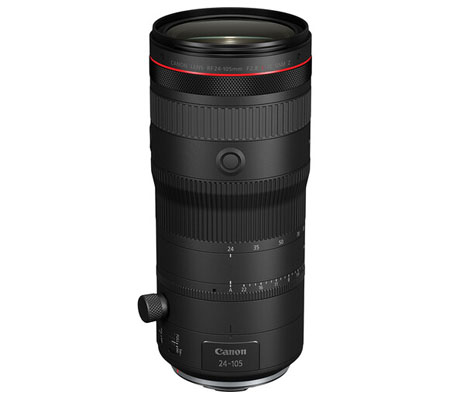

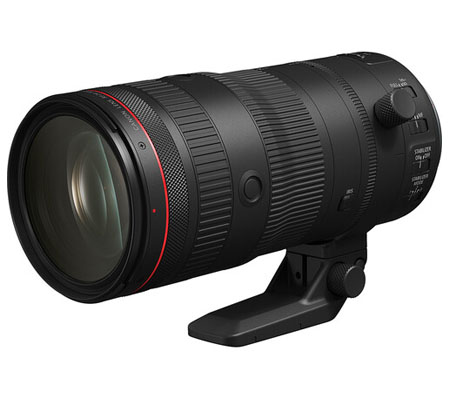

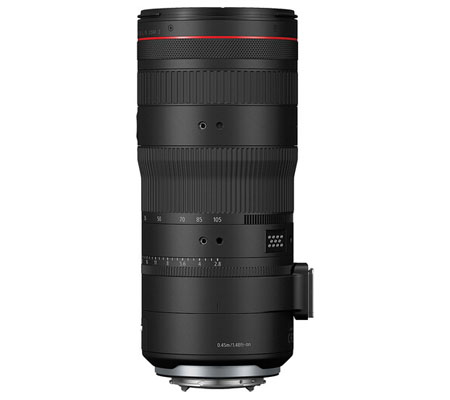

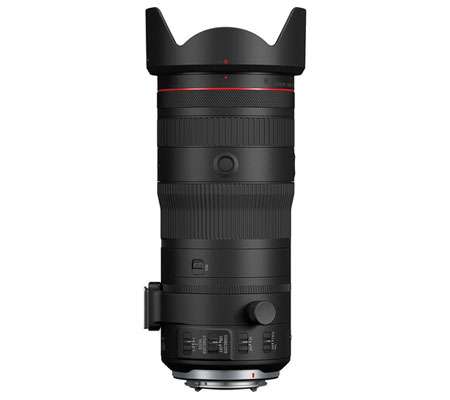

Canon RF 24-105mm f/2.8 L IS USM Z

Lens

Focal Length

24-105 mm

Maximum and Minimum Aperture

f/2.8 - f/22

Lens Mount Type

RF Mount

Compatible Cameras

Canon EOS R-series, full-frame and APS-C (focal length equivelant to approx. 38.4-168mm when used on an APS-C camera)

Minimum Focusing Distance

0.45 m/1.48 ft. (at 24 mm), 0.45 m/1.48 ft. (at 105 mm)

Maximum Magnification

0.08x (at 24 mm), 0.29x (at 105 mm)

Field of View

24mm: approx. 16.0 x 10.7 in. (408 x 272mm);
105mm: approx. 4.8 x 3.2 in. (121 x 80mm)

Angle of View (Diagonal)

Approx. 84° - 23° 20′

Optical Design

Lens Construction

23 elements in 18 groups

Special Elements

4 UD elements, 3 Aspheric elements

Lens Coating

Canon SSC (Super Spectra Coating), ASC (Air Sphere Coating), Flourine coating

Filter Size Diameter

ø82 mm

Aperture Blades

Image Stabilization

5.5 stops correction with In-lens Optical Image Stabilization (8.0 stops correction with EOS R series in-body coordinated Image stabilization)

Focusing

Focusing Drive System

(Two) Canon Nano USM focus motors

Full-time Manual Focusing

Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R/RP/Ra/R100 — Approx. 88% x 100%
EOS R5/R6 — With face + tracking-priority AF: Approx. 100% × 100%
Other than with face + tracking-priority AF: Approx. 90% × 100%
EOS R3, R6, Mark II, R8 R7, R10, R50 — For whole area AF: Approx. 100% × 100%
For non-whole area AF when subject has been detected: Approx. 100% × 100%
When subject has not been detected: Approx. 90% × 100%
