Specification :

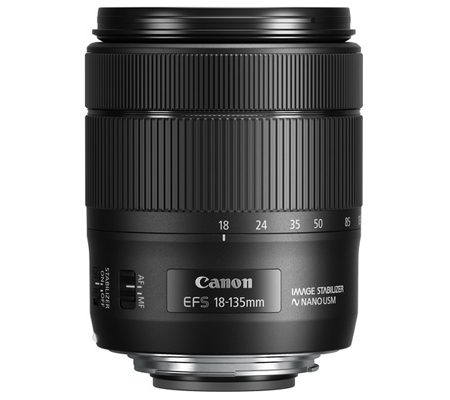

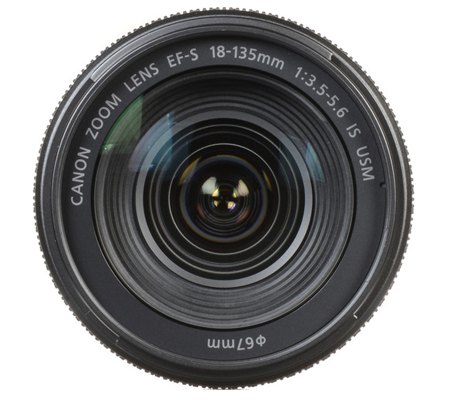

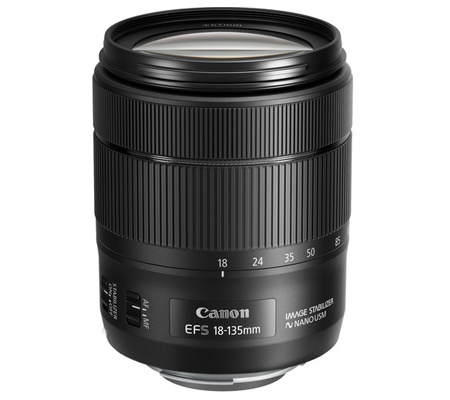

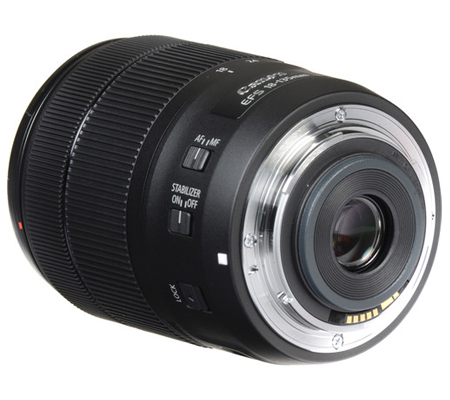

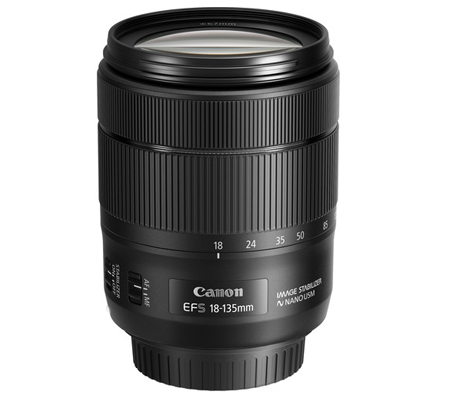

A versatile zoom optimized for both stills and video, the EF-S 18-135mm f/3.5-5.6 IS USMfrom Canon is a 28.8-216mm equivalent lens designed for APS-C-format DSLRs. Incorporating NANO USM technology, this lens is characterized by its combination of a fast, stills-optimized ring-type Ultrasonic Motor and smooth, silent video-optimized stepping motor for all-around focusing performance to benefit multimedia image-makers. This dual-purpose AF motor also offers notably quicker performance throughout the zoom range for more responsive shooting from near to far. Additionally, also aiding both photo and movie recording, an Image Stabilizer system compensates for up to four stops of camera shake for sharper handheld shooting. The lens is also compatible with the optional PZ-E1 Power Zoom Adapter for more natural and controllable zooming performance. Updated to suit the increasing presence of video in a photographer's workflow, this zoom is versatile in regard to both focus handling as well as with its wide-angle to telephoto reach.
In regard to the optical design, one ultra-low dispersion element is featured, along with one aspherical element, to reduce chromatic aberrations throughout the zoom range as well as limit spherical aberrations and distortions for increased clarity and sharpness.
Performance | |
---|---|
Focal Length | 18 - 135mm Comparable 35mm Focal Length: 28.8 - 216 mm |
Aperture | Maximum: f/3.5 - 5.6 Minimum: f/22 - 38 |
Camera Mount Type | Canon EF-S |
Format Compatibility | APS-C |
Angle of View | 74° 20' - 11° 30' |
Minimum Focus Distance | 1.28' / 39 cm |
Magnification | 0.28x |
Optical Design | 16 Elements in 12 Groups |
Diaphragm Blades | 7, Rounded |
Features | |
---|---|
Image Stabilization | Yes |
Autofocus | Yes |
Physical | |
---|---|
Filter Thread | Front: 67 mm |
Dimensions (DxL) | Approx. 3.05 x 3.78" / 77.4 x 96 mm |
Weight | 1.13 lb / 515 g |
Packaging Info | |
---|---|
Package Weight | 1.65 lb |
Box Dimensions (LxWxH) | 7.2 x 4.9 x 4.8" |
