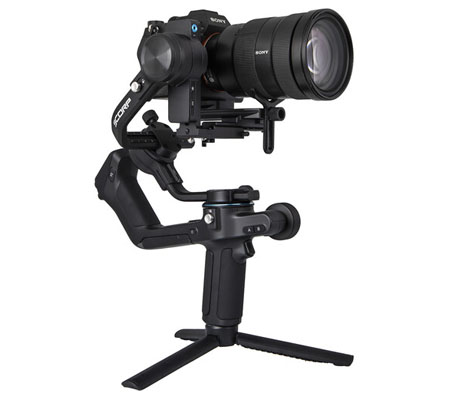

Feiyu SCORP 2 Kit 3-Axis Gimbal Stabilizer with AI-Tracker

Included : 1x Feiyu SCORP 2 1x Tripod 1x USB 2.0 to USB-C charging cable 7x Camera control cable (USB-C to Multi, USB-C to Micro, USB-C to USB-C, USB-C to TRS2.5, USB-C to DC2.5mm, USB-C to TRS3.5, USB-C to Mini) 1x Allen key 1x Fixed plate 1x Slider 1x Quick release plate 1x Camera backing base 1x Lens holder 1x Lens holder screw 3x Camera fixed screw 1x ARRI Rosettes expansion mount 1x Expandable module 1x Carbon fiber 275mm extension rod 1x Storage bag 1x Manual Book

FeiyuTech SCORP 2 - Integrated AI tracking sensor & underslung handle, super weapon for solo filmmaking.

From ease of installation to payload performance to interactive design, SCORP 2 is your companion for creating and capturing amazing content. lt is specially built for mirrorless cameras, with a load capacity of up to 2500G, and can easily accommodate a wide range of mirrorless and DSLR camera models.

Tech Specifications:

Battery Capacity: 2500mAh

Battery Life: 13h

Charging Time: About 1.6h (Using 18W fast charger)

Dimensions: 257*71*260mm (Gimbal folded position)

Weight: About 1070g/2.36lb

Payload: About 2.5kg/5.51lb

Materials In Main Body: Synthetic macromolecular resin, aluminum alloy

Water-Proof Grade: Not water-proof

Key Features


Delicate and Smooth Control The joystick and buttons have been upgraded, offering more delicate and smooth control, which enhances stability and comfort.	Foldable Aileron Bracket The fuselage comes with a foldable aileron bracket that can be set upright without the need for a tripod.	1.3" Touch Screen The body features a 1.3-inch touch screen, providing clear filming status and parameter settings. With the touch screen, you can easily control the gimbal's functions, adjust parameters.


Multifunctional Control Knob The multi-function knob can be used to control the precise rotation of each axis of the gimbal or directly control the electronic zoom function. Additionally, the knob can adjust the damping feel, providing rich tactile feedback.	Connect to the App Connecting to the Feiyu SCORP App allows you to access even more professional settings, such as parameter adjustment and somatosensory remote control.	Somatosensory Remote Control Somatosensory remote control which enables our mobile phone's gravity sensor to achieve the remote control of the lens direction, providing an immersive and interactive exploration experience filled with fun.

Product Name	Feiyu SCORP 2 3-Axis Handheld Gimbal for Camera
Battery Capacity	2500mAh, built-in battery cannot be removed, charge it via the USB-C port which below the multifunction knob,support all the normal charger and quick charger which charging power≤18W
Operating Voltage	6.8V-8.4V
Theoretical Battery Life	13h
Charging Time	About 1.6h (Using 18W fast charger)
Materials In Main Body	Synthetic macromolecular resin, aluminum alloy
Weight	About 1070g/2.36 lb (Not including tripod and other accessories, as well as the camera)
Payload	About 2.5kg/5.51 lb (well balanced)
Water-Proof Grade	Not Water-proof
Dimensions	250152306mm(Gimbal balancing position) 25771260mm(Gimbal folded position)
Compatible Cameras	Sony, Canon, Nikon, Panasonic camera etc (Check Camera Compatibility Lists for more details)
AI Tracking	Built-in AI tracking module, enabling tracking and gesture control functions without the need for an app or accessories.
Operating Temperature	-10~45?
Rotatable Range	Tilt: 320°(With limitation) Roll: 320°(With limitation) Pan: 360°(Unlimited)
Controllable Range	Tilt: +180°~-51° Roll: +36°~-36° Pan: 360°(Unlimited)
Quick Release Plate	Quick release plate (115x38x10mm) and optional camera backing base (50x38x10mm)are compatible with ARCA quick release system. Can be removed from the gimbal together with the camera, and fast switch between popular quick release systems without re-assembling the camera.
Follow Mode	?PF: Pan follow, only the pan axis follows the movement of user's hand ?PTF: Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not ?FPV: Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand ?Lock: All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed ?FFW: flash follow, where all 3 axes follow the movement of user's hand in high follow speed
APP	Feiyu SCORP
How To Control The Camera	While connecting gimbal and cameras with cable (Standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more). Alternatively, when connected to the camera via Bluetooth, users can use the shutter button to control picture-taking/recording for supported camera models (see Camera Compatibility List for more).
Motor Power Auto Tune	Auto Tune motor power is available to the App or Touch Screen. Gimbal auto tune the motor power according to the camera you install. Auto Tune operation: Enter the motor power setting through touch screen, and tap Auto Tune, then put gimbal on the table until the display prompt calibration complete. Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.
Extended Ports	At the bottom of the handle: 1/4 inch thread hole1, which can mount Tripod; Below the multifunction knob: Type-C charging port1; In front of tilt axis: Type-C camera control port1, also supports charging for shooting devices compatible with the USB power supply protocol; Type-C extension port1 to connect focus motor and other accessories; At the back of tilt axis: Type-C extension port1 to connect focus motor and other accessories;Type-C image transmission port1; In front of quick release plate: 1/4 inch thread hole1, for installation of lens holder; On the top of vertical cross arm: 1/4 inch thread hole1, for installation of ARRI Rosettes Expansion Accessory;
