| TYPE | Type | Digital Single Lens Mirrorless camera |
|---|
| Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card
(Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards.) |
|---|
| Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) |
|---|

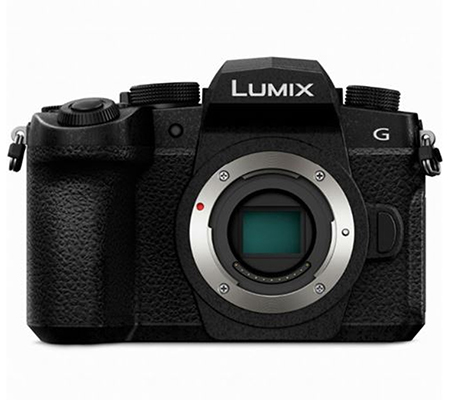

| Lens mount | Micro Four Thirds mount |
|---|
| IMAGE SENSOR | Type | Live MOS Sensor |
|---|
| Total pixels | 21.77 megapixels |
|---|
| Camera effective pixels | 20.30 megapixels |
|---|
| Color filter | Primary color filter |
|---|
| Dust reduction system | Supersonic wave filter |
|---|
| IMAGE STABILIZATION SYSTEM | Image sensor shift type (5-axis / 5.0-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-FS12060 is used.]
Dual I.S. (5.0-stop* Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm), when H-FSA14140 is used.]
|
|---|
| RECORDING SYSTEM | Recording file format | Still image | JPEG (DCF, Exif 2.31), RAW |
|---|
| 4K PHOTO** | MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31) |
|---|
| Motion picture | MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch) |
|---|
| Aspect ratio | 4:3, 3:2, 16:9, 1:1 |
|---|
| Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard |
|---|
| Color space | sRGB, AdobeRGB |
|---|
| File size (Pixels) | Still image | [4:3] 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 3328x2496(4K PHOTO)
[3:2] 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 3504x2336(4K PHOTO)
[16:9] 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
[1:1] 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO) |
|---|
| Motion picture** MP4** | [4K] 3840x2160 4K/30p: 100Mbps
[4K] 3840x2160 4K/25p: 100Mbps
[4K] 3840x2160 4K/24p: 100Mbps
[Full HD] 1920x1080 FHD/60p: 28Mbps
[Full HD] 1920x1080 FHD/50p: 28Mbps
[Full HD] 1920x1080 FHD/30p: 20Mbps
[Full HD] 1920x1080 FHD/25p: 20Mbps
[HD] 1280x720 HD/30p: 10Mbps
[HD] 1280x720 HD/25p: 10Mbps |
|---|
| Motion picture** AVCHD Progressive** AVCHD** | [Full HD] 1920x1080 FHD/50p: 28Mbps, 50p recording
[Full HD] 1920x1080 FHD/50i: 17Mbps, 50i recording
[Full HD] 1920x1080 FHD/25p: 24Mbps, 50i recording (sensor output is 25fps)
[Full HD] 1920x1080 FHD/24p: 24Mbps, 24p recording |
|---|
| High speed video** *When Creative Video Mode is selected. | MP4** | [Full HD] 1920x1080 30p, 20Mbps (Sensor output is 120fps / 100fps / 90fps / 75fps / 60fps / 50fps) |
|---|
| Continuous recordable time (Motion picture)** | AVCHD [FHD/50p]: Approx. 100 min (rear monitor, LVF) with H-FS12060 / H-FSA14140
AVCHD [FHD/50i]: Approx. 110 min (rear monitor, LVF) with H-FS12060, Approx. 100 min (rear monitor, LVF) with H-FSA14140
MP4 [4K/30p, 4K/25p]: Approx. 90 min (rear monitor, LVF) with H-FS12060 / H-FSA14140 |
|---|
| Actual recordable time (Motion picture)** | AVCHD [FHD/50p]: Approx. 50 min (rear monitor, LVF) with H-FS12060 / H-FSA14140
AVCHD [FHD/50i]: Approx. 55 min (rear monitor, LVF) with H-FS12060, Approx. 50 min (rear monitor, LVF) with H-FSA14140
MP4 [4K/30p, 4K/25p]: Approx. 45 min (rear monitor, LVF) with H-FS12060 / H-FSA14140 |
|---|
| VIEWFINDER | Type | OLED Live View Finder |
|---|
| Pixels | Approx. 2,360k dots |
|---|
| Field of view / Magnification | Approx. 100% / Approx. 1.48x / 0.74x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 |
|---|
| Eye point / Diopter adjustment | Approx. 20 mm / -4.0 - +4.0 (dpt) |
|---|
| Eye sensor | Yes |
|---|

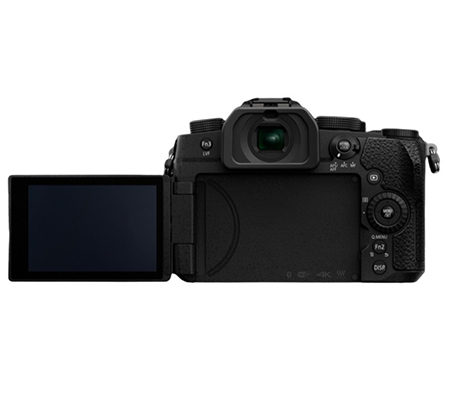

| REAR MONITOR | Type | OLED monitor with static touch control |
|---|
| Monitor size | Free-angle, 7.66cm (3.0-inch), 3:2 aspect |
|---|
| Pixels | Approx. 1,040k dots |
|---|
| Field of view | Approx. 100% |
|---|
| FOCUS | Type | Contrast AF system |
|---|
| DFD technology | Yes |
|---|
| Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
|---|
| AF mode | Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint
(Full area touch is available) (Scalable AF frame size and flexible AF position) |
|---|
| AF detective range | EV -4 - 18 (ISO100 equivalent) |
|---|
| Starlight AF | Yes |
|---|
| AF assist lamp | Yes |
|---|
| AF lock | Yes (AF/AE LOCK button) |
|---|
| Post Focus / Focus Stacking | Yes / Yes |
|---|
| Others | AF Sensitivit, AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock |
|---|
| EXPOSURE CONTROL | Light metering system | 1728-zone multi-pattern sensing system |
|---|
| Light metering mode | Multiple / Center Weighted / Spot |
|---|
| Metering range | EV 0 - 18 (F2.0 lens, ISO100 equivalent) |
|---|
| Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure |
|---|
| ISO sensitivity (Standard output sensitivity) | Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step) |
|---|
| Exposure compensation | 1/3 EV step, ±5EV (±3 EV for motion picture) |
|---|
| AE lock | Yes (AF/AE LOCK button) |
|---|
| WHITE BALANCE | White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
|---|
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
|---|
| Color temperature setting | 2500-10000K in 100K |
|---|
| SHUTTER | Type | Focal-plane shutter |
|---|
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/4,000 - 60
Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: 1/16,000 - 1
Motion picture: 1/16,000 - 1/25
|
|---|
| Live View Composite | 1/2 - 60 |
|---|
| Self timer | 10sec, 3 images / 2sec / 10sec |
|---|
| Remote control | Remote control by DMW-RS2 (sold separately) |
|---|
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic) |
|---|
| BRACKET | AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
|---|
| Aperture bracket | 3, 5 or all positions in 1 EV step |
|---|
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
|---|
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
|---|
| PANORAMA SHOT | Yes (Standard / Wide) |
|---|
| BURST SHOOTING | Burst speed | [Mechanical shutter / Electronic first curtain shutter]
AFS/MF: H: 9 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-FS12060 is used.
AFF/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-FS12060 is used.
[Electronic shutter]
AFS/MF: H: 9 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
|---|
| Number of recordable images | More than 45 images (when there are RAW files with the particular speed)
More than 300 images (when there are no RAW files)
(depending on memory card type, aspect, picture size and compression) |
|---|
| 4K PHOTO** | Burst speed | 30 frames/sec |
|---|
| Exif information | Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.) |
|---|
| TIME LAPSE SHOT | Yes |
|---|
| STOP MOTION ANIMATION | Yes |
|---|
| FLASH | Flash type | TTL Built-in-Flash, GN9.0 equivalent (ISO200 ?m) / GN6.4 equivalent (ISO100 ?m) (Reference), Built-in Pop-up |
|---|
| Flash mode | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off?????*For iA, iA+ only. |
|---|
| Synchronization speed | Less than 1/200 second |
|---|
| Flash output adjustment | 1/3EV step ±3EV |
|---|
| Flash synchronization | 1st. Curtain Sync., 2nd Curtain Sync. |
|---|
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
|---|
| LIVE VIEW | Digital zoom | 2x, 4x |
|---|
| Extra Tele Conversion | Still image: Max. 2x
Motion picture: 2.7x (FHD), 4.0x (HD) |
|---|
| Other functions | Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra Pattern (Still image / motion picture) |
|---|
| DIRECTION DETECTION FUNCTION | Yes |
|---|
| FUNCTION BUTTON | REC | Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot "4K PHOTO" / Operation Lock / Focus Ring Lock / Dial Operation Switch / Photo Style / Filter Effect / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / E-Stabilization (Video) / I.S. Lock (Video) / 4K Live Cropping / Snap Movie / Motion Pic. Set / Picture Mode in Rec. / Sound Rec Level Adj. / Sound Rec Level Disp. / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Step Zoom / Zoom Speed / Exposure Comp. / Sensitivity / White Balance / AF Mode/MF / Rec/Playback Switch / Restore to Default |
|---|
| PLAY | Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Off / Restore to Default |
|---|
| PHOTO STYLE | Standard / Vivid / Natural / Monochrome / L. Monochrome / L. Monochrome D / Scenery / Portrait / Custom / Cinelike D / Cinelike V / V-LogL |
|---|
| FILTER | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only. |
|---|
| PRINT | Direct print | PictBridge compatible |
|---|
| INTERFACE | USB | USB 2.0 Micro-B |
|---|
| HDMI*** | Monitor-through | 4:2:2 8bit / 4:2:0 8bit |
|---|
| Playback | microHDMI TypeD / VIERA Link
Video: Auto / 4K / 1080p / 1080i / 720p / 576p
Audio: Stereo |
|---|
| Audio video output | No |
|---|
| Remote input | φ2.5mm |
|---|
| External microphone input | φ3.5mm
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). |
|---|
| Headphone output | φ3.5mm |
|---|
| Microphone | Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). |
|---|
| Speaker | Monaural |
|---|
| WIRELESS | Wi-Fi | IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode |
|---|
| Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
|---|
| LANGUAGE | OSD language | Japanese, English, German, French, Italian, Spanish |
|---|
| POWER | Battery | Li-ion Battery Pack (7.2V, 1200mAh, 8.7Wh) (Included)
USB power supply, USB power charging |
|---|
| Battery life (CIPA standard) | Approx. 290 images (rear monitor), 290 images (LVF), 1000 images (Power Save LVF mode*) with H-FS1442A / H-FS12060 / H-FSA14140
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
|---|
| Battery grip | DMW-BGG1 (sold separately) |
|---|
| DIMENSIONS / WEIGHT | Dimensions (W x H x D) | 130.4 x 93.5 x 77.4 mm / 5.14 x 3.69 x 3.05 inch (excluding protrusions) |
|---|
| Weight | Approx. 533g / 1.18 lb (SD card, Battery, Body)
Approx. 481g / 1.06 lb (Body only)
Approx. 743g / 1.64 lb (SD card, Battery, H-FS12060 lens included)
Approx. 798g / 1.76 lb (SD card, Battery, H-FSA14140 lens included) |
|---|
| DUST AND SPLASH RESISTANT* | Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
|---|
| OPERATING ENVIRONMENT | Operating temperature | 0? to 40? (32°F to 104°F) |
|---|
| Operating humidity | 10%RH to 80?RH |
|---|
| STANDARD ACCESSORIES | Software | Playback / Editing | ? The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0AE is available for download at Panasonic website using computer connected to the Internet.
https://panasonic.jp/support/software/photofun/download/d_pfs10ae.html (For Windows)
? The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) |
|---|
| Standard accessories | DC-G90 Kit / DC-G91 Kit
Body Cap, Hot Shoe Cover, Battery Pack, Battery Charger (AC Adaptor, USB connection Cable included), USB Connection Cable, Shoulder Strap
? Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
|---|
| NOTE | ** About motion picture recording / 4K PHOTO recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4 (under 28Mbps)].
- Use an SD memory card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] [High Speed Video] or [4K PHOTO].
(SD speed class is the speed standard regarding continuous writing.)
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD] [HD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
*** For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible". |
|---|
