Specification :

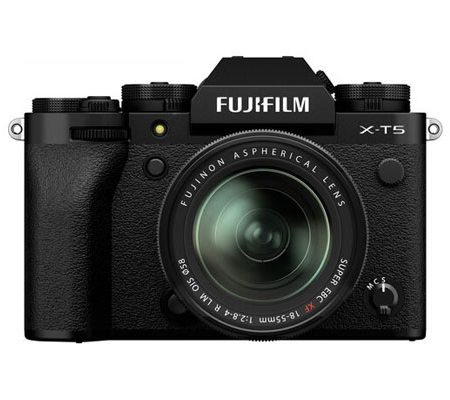

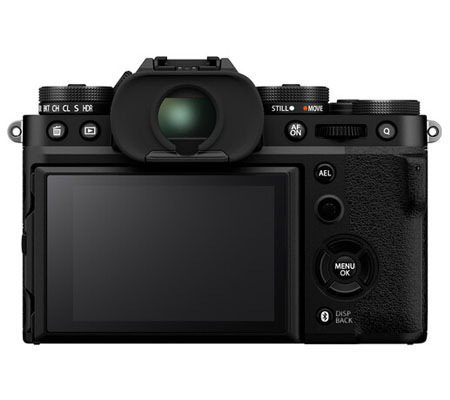

| Model name | FUJIFILM X-T5 | |
| Lens Mount | FUJIFILM X mount | |
| Image sensor | 23.5mm x 15.7mm (APS-C) X-Trans CMOS 5 HR with primary color filter | |
| Number of effective pixels | 40.2 millions pixels | |
| Sensor Cleaning System | Ultra Sonic Vibration | |
| Image Processing Engine | X-Processor 5 | |
| Storage media | SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 *Please check Compatibilityfor more detail. | |
| File format of still image | DCF | Compliant with Design rule for Camera File system (DCF2.0) |
| JPEG | Exif Ver.2.32*1 | |
| HEIF | 4:2:2 10bit | |
| RAW | 14bit RAW (RAF original format) | |
| TIFF | 8bit / 16bit RGB (In-camera Raw Conversion Only) | |
| Number of recorded pixels | ?L? | ?4:3? 6864 x 5152 ?3:2? 7728 x 5152 ?16:9? 7728 x 4344 ?1:1? 5152 x 5152 ?5:4? 6432x5152 |
| ?M? | ?4:3? 4864 x 3648 ?3:2? 5472 x 3648 ?16:9? 5472 x 3080 ?1:1? 3648 x 3648 ?5:4? 4560x3648 | |
| ?S? | ?4:3? 3464 x 2592 ?3:2? 3888 x 2592 ?16:9? 3888 x 2184 ?1:1? 2592 x 2592 ?5:4? 3264x2592 | |
| Panorama | ?L? | ?vertical? 9600 x 2160 ?Horizontal? 9600 x 1440 |
| ?M? | ?vertical? 6400 x 2160 ?Horizontal? 6400 x 1440 | |
| Digital Tele-Converter | 2.0x / 1.4x / OFF | |
| Sensitivity | Still Image | Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO125 - 12800 (1/3 step) Extended Output: ISO64 / ISO80 / ISO100 / ISO25600 / ISO51200 |
| Movie | Standard Output: AUTO / ISO125 - 12800 (1/3 step) Extended Output: ISO25600 | |
| Exposure control | TTL 256-zone metering / Multi / Spot / Average / Center Weighted | |
| Exposure mode | P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure) | |
| Exposure compensation | Still | -5.0EV - +5.0EV?1/3EV step |
| Movie | -2.0EV - +2.0EV 1/3EV step | |
| Image stabilizer | Mechanism | Image sensor shift mechanism with 5-axis compensation |
| Compensation Effect | 7.0 stops *based on CIPA standard *Pitch/yaw shake only *With XF35mmF1.4 R lens mounted | |
| Digital Image Stabilization | Yes (movie mode only) | |
| IS MODE BOOST | Yes (movie mode only) | |
| Shutter type | Focal Plane Shutter | |
| Shutter speed | Mechanical shutter | P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. |
| Electronic shutter | P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: 1sec. Fixed | |
| Electronic front curtain shutter | P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. | |
| Mechanical + Electronic shutter | P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. *Mechanical shutter works until 1/8000sec. | |
| E-front + Mechanical shutter | P mode: 30sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min. *Electronic front curtain shutter works until 1/2000sec. | |
| E-front + Mechanical + Electronic shutter | P mode: 30sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min. *Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec. *The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used. | |
| Movie | 6.2K: 1/8000sec. to 1/24 sec. DCI4K/4K: 1/8000sec. to 1/4 sec. FHD: 1/8000sec. to 1/4 sec. *Cannot choose slower shutter speed than framerate for some settings. | |
| Synchronized shutter speed for flash | Mechanical shutter: 1/250sec. or slower Electronic shutter: 1/125sec. or slower | |
| Continuous shooting | CH Electronic shutter Approx. 20fps (1.29x Crop) (JPEG 168 frames, Compressed RAW 72 frames, Lossless compressed RAW 41 frames, Uncompressed RAW 23 frames, Compressed RAW + JPEG 37 frames, Lossless compressed RAW + JPEG 31 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 13fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 104 frames, Lossless compressed RAW 53 frames, Uncompressed RAW 23 frames, Compressed RAW + JPEG 56 frames, Lossless compressed RAW + JPEG 44 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 10fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 70 frames, Uncompressed RAW 25 frames, Compressed RAW + JPEG 72 frames, Lossless compressed RAW + JPEG 53 frames, Uncompressed RAW + JPEG 23 frames) CH Electronic shutter Approx. 13fps (JPEG 163 frames, Compressed RAW 56 frames, Lossless compressed RAW 29 frames, Uncompressed RAW 22 frames, Compressed RAW+JPEG 32 frames, Lossless compressed RAW+JPEG 26 frames, Uncompressed RAW+JPEG 20 frames) CH Electronic shutter Approx. 8.9fps (JPEG 1000+ frames, Compressed RAW 94 frames, Lossless compressed RAW 40 frames, Uncompressed RAW 23 frames, Compressed RAW+JPEG 45 frames, Lossless compressed RAW+JPEG 30 frames, Uncompressed RAW+JPEG 22 frames) CH Mechanical shutter Approx. 15fps (JPEG 119 frames, Compressed RAW 39 frames, Lossless compressed RAW 22 frames, Uncompressed RAW 19 frames, Compressed RAW+JPEG 27 frames, Lossless compressed RAW+JPEG 21 frames, Uncompressed RAW+JPEG 19 frames) CH Mechanical shutter Approx. 10fps (JPEG 1000+ frames, Compressed RAW 56 frames, Lossless compressed RAW 29 frames, Uncompressed RAW 19 frames, Compressed RAW+JPEG 34 frames, Lossless compressed RAW+JPEG 25 frames, Uncompressed RAW+JPEG 19 frames) CH Mechanical shutter Approx. 7.0fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 33 frames, Uncompressed RAW 20 frames, Compressed RAW+JPEG 45 frames, Lossless compressed RAW+JPEG 22 frames, Uncompressed RAW+JPEG 20 frames) Pre-shot Electronic shutter Approx. 20fps (1.29x Crop) (While half press 20 frames, After full press 140 frames) Pre-shot Electronic shutter Approx. 13fps (1.29x Crop) (While half press 13 frames, After full press 300 frames) Pre-shot Electronic shutter Approx. 10fps (1.29x Crop) (While half press 10 frames, After full press 370 frames) Pre-shot Electronic shutter Approx. 13fps (While half press 13 frames, After full press 70 frames) *Recordable frames depends on recording media *Speed of continuous shooting depends on shooting environment and shooting frames | |
| Drive Mode | AE Bracketing | 2 frames / 3 frames / 5 frames / 7 frames / 9 frames *by 1/3EV step, up to ±3EV steps |
| Filmsimulation bracketing | Any 3 types of film simulation selectable | |
| Dynamic Range Bracketing | 100% / 200% / 400% | |
| ISO sensitivity Bracketing | ±1/3EV / ±2/3EV / ±1EV | |
| White Balance Bracketing | ±1 / ±2 / ±3 | |
| Focus Bracketing | AUTO / MANUAL | |
| Multiple Exposure | Yes (Max. 9 frames) / Additive / Average / Bright / Dark | |
| HDR Mode | AUTO / 200% / 400% / 800% / 800% + | |
| Advanced filter | Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple) | |
| Pixel Shift Multi Shot | Yes | |
| Focus | Mode | Single AF / Continuous AF / MF |
| Type | Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) | |
| Low-light Performance | Contrast: -4.0EV XF50mmF1.0 attached Phase Detection: -7.0EV XF50mmF1.0 attached | |
| AF frame selection | Single point AF: 13x9 / 25x17 (Changeable size of AF frame) Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking) All: Yes | |
| Face/eye detection | Yes | |
| Subject detection | Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train) | |
| Flash | EF-X8 | Guide Number: approx. 11 (ISO200?m) / approx. 8 (ISO100?m) Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF |
| Shoe mount flash | Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS) Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF | |
| Synchronized terminal | Sync. Mode: 1st Curtain / 2nd Curtain Flash Mode: MANUAL | |
| Hot shoe | Yes (Dedicated TTL Flash compatible) | |
| Viewfinder | EVF: 0.5 inch OLED Color Viewfinder, Approx. 3.69 million dots Coverage of Viewing Area vs. Capturing Area: Approx. 100% Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece) Diopter Adjustment: -5 - +3m-1 Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1 Diagonal Angle of View: approx. 39° (Horizontal angle of view: approx. 32° ) Built-In Eye Sensor | |
| LCD monitor | 3.0 inch Tilt-Type(Three Direction) Touch Screen Color LCD Monitor Aspect Ratio: 3:2 Dots: Approx. 1.84 million dots | |
| Touch Screen Mode | Shooting Mode | Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting |
| Playback Mode | Swipe, Pinch-in / Pinch-out, Double-tap, Drag | |
| Movie recording | File format | MOV: HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling) MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling) MP4: MPEG-4 AVC/H.264, AAC |
| Movie compression | All Intra / Long GOP | |
| File size Frame rate Bitrate | [6.2K(16:9)] 6240 x 3510?29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [DCI4K HQ(17:9)] 4096 x 2160?29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [4K HQ(16:9)] 3840 x 2160?29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [DCI4K(17:9)] 4096 x 2160?59.94p/50p/29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [4K(16:9)] 3840 x 2160?59.94p/50p/29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9)] 2048 x 1080?59.94p/50p/29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [Full HD(16:9)] 1920 x 1080?59.94p/50p/29.97p/25p/24p/23.98p?360Mbps/200Mbps/100Mbps/50Mbps [Full HD(17:9) High speed rec.] 2048 x 1080?240p/200p/120p/100p?360Mbps(recording)/200Mbps(recording) [Full HD(16:9) High speed rec.] 1920 x 1080?240p/200p/120p/100p?360Mbps(recording)/200Mbps(recording) *For recording movies, use a SD memory card with UHS Speed Class 3 or higher. *For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher. *Selectable bitrate will be changed depends on the setting. *Recording time can become short depending on the temperature and/or shooting conditions | |
| Film simulation mode | 19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia) | |
| Monochromatic Color | Yes | |
| Grain Effect | Roughness | STRONG, WEAK, OFF |
| Size | LARGE, SMALL | |
| Color Chrome Effect | STRONG, WEAK, OFF | |
| Color chrome Blue | STRONG, WEAK, OFF | |
| Smooth Skin Effect | STRONG, WEAK, OFF | |
| Dynamic range setting | Still | AUTO / 100? / 200? / 400? ISO restriction: DR100%: No limit?DR200%: ISO250 or more?DR400%: ISO500 or more |
| Movie | 100? / 200? / 400? ISO restriction: DR100%: No limit?DR200%: ISO250 or more?DR400%: ISO500 or more | |
| White balance | Auto | White Priority / Auto / Ambience Priority |
| Custom | Custom1 - 3 | |
| Color temperature selection | 2500K - 10000K | |
| Preset | Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater | |
| Clarity setting | ±5 steps | |
| Self-timer | Still | 10sec. / 2sec. |
| Movie | 10sec. / 5sec. / 3sec. | |
| Interval timer shooting | Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode) | |
| Wireless transmitter | Standard | IEEE802.11a/b/g/n/ac (standard wireless protocol) |
| Encryption | WPA/WPA2 mixed mode, WPA3 | |
| Access mode | Infrastructure | |
| Bluetooth® | Standartd | Bluetooth Ver. 4.2 (Bluetooth low energy) |
| Operating frequency (Center frequency) | 2402 - 2480MHz | |
| Terminal | Digital interface | USB Type-C (USB3.2 Gen2x1) |
| HDMI output | HDMI Micro connector (Type D) | |
| Others | ø3.5mm, stereo mini connector (Microphone) ø2.5mm, Remote Release Connector Hot shoe Synchronized terminal | |
| Power supply | NP-W235 Li-ion battery (included) | |
| Battery life for still images*2 | Economy Mode: Approx. 740 frames Normal Mode: Approx. 580 frames *When XF35mmF1.4 R is set | |
| Actual battery life of movie capture*2 | 6.2K: Approx. 90min. (29.97p) 4K: Approx. 80min. (59.94p) Full HD: Approx. 90min. (59.94p), Approx. 100min. (120P) *Face detection is set to OFF | |
| Continuance battery life of movie capture*2 | 6.2K: Approx. 130min. (29.97p) 4K: Approx. 130min. (59.94p) Full HD: Approx. 150min. (59.94p) *Face detection is set to OFF | |
| Dimensions | Width: 129.5mm Height: 91mm Depth: 63.8mm (Minimum Depth: 37.9mm) | |
| Weight | including battery and memory card: Approx. 557g excluding battery and memory card: Approx. 476g | |
| Operation Environment | Operating Temperature | -10? - +40? |
| Operating Humidity | 10% - 80% (no condensation) | |
| Starting up period | Approx. 0.49sec. | |
| Accessories included | Li-ion battery NP-W235 AC power adapter AC-5VJ Plug adapter USB cable Headphone adapter Shoulder strap Body cap Hot shoe cover Sync terminal cover Owner's manual | |
| Resolution/Aspect | Size | Frame rate | File format/Compression | Bit rate*1 | Bit depth | HDMI outupt Resolution(Frame rate)/Sampling/Bit depth | Crop Magnification | ||
|---|---|---|---|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||||||
| 6.2K 16:9 | 6240 x 3510 | 29.97p 25.00p 24.00p 23.98p | H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV | 360Mbps | 10bit | FHD 4:2:2 10bit (When H.265 All-Intra 4:2:2 MOV selected)*2 4K 4:2:2 10bit (When H.265 All-Intra 4:2:0 MOV selected)*2 | Not possible | 1.23x | |
| H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 360Mbps 200Mbps 100Mbps 50Mbps | FHD 4:2:2 10bit (When H.265 Long GOP 4:2:2 MOV selected)*2 4K 4:2:2 10bit (When H.265 Long GOP 4:2:0 MOV selected)*2 | Not possible | 1.23x | |||||
| DCI4K HQ 17:9 4K HQ 16:9 | 4096 x 2160 3840 x 2160 | 29.97p 25.00p 24.00p 23.98p | H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV | 360Mbps | 10bit | DCI4K/4K 4:2:2 10bit | Not possible | 1.23x | |
| H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 360Mbps 200Mbps 100Mbps 50Mbps | Not possible | 1.23x | ||||||
| H.264 All-Intra 4:2:0 MOV | 360Mbps | 8bit | DCI4K/4K 4:2:2 8bit | Not possible | 1.23x | ||||
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 360Mbps 200Mbps 100Mbps 50Mbps | Not possible | 1.23x | ||||||
| DCI4K 17:9 4K 16:9 | 4096 x 2160 3840 x 2160 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV | 360Mbps | 10bit | DCI4K/4K 4:2:2 10bit | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | |
| H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 360Mbps 200Mbps 100Mbps 50Mbps | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||||
| H.264 All-Intra 4:2:0 MOV | 360Mbps | 8bit | DCI4K/4K 4:2:2 8bit | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 360Mbps 200Mbps 100Mbps 50Mbps | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||||
| FHD 17:9 FHD 16:9 | 2048 x 1080 1920 x 1080 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV | 360Mbps | 10bit | FHD 4:2:2 10bit*3 | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | |
| H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 360Mbps 200Mbps 100Mbps 50Mbps | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||||
| H.264 All-Intra 4:2:0 MOV | 360Mbps | 8bit | FHD 4:2:2 8bit*3 | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 360Mbps 200Mbps 100Mbps 50Mbps | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||||||
| High speed FHD 17:9 FHD 16:9 | 2048 x 1080 1920 x 1080 | 240fps(4×/8×/10×) 200fps(4×/8×) 120p (2x/4x/5x) 100p (2x/4x) | H.265 All-Intra 4:2:2 MOV H.265 All-Intra 4:2:0 MOV | 360Mbps (when recording) | 10bit | FHD(59.94p) 4:2:2 10bit*4 | Not possible | 1.23x | |
| H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV | 360Mbps (when recording) 200Mbps (when recording) | ||||||||
| H.264 All-Intra 4:2:0 MOV | 360Mbps (when recording) | 8bit | FHD(59.94p) 4:2:2 8bit*4 | ||||||
| H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4 | 360Mbps (when recording) 200Mbps (when recording) | ||||||||
| Resolution/Aspect | Size | Frame rate | HDMI outupt Resolution/Sampling/Bit depth | Crop Magnification | |||
|---|---|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||||
| 6.2K 16:9 | 6240 x 3510 | 29.97p 25.00p 24.00p 23.98p | FHD 4:2:2 10bit*2 | Not possible | 1.23x | ||
| DCI4K HQ 17:9 4K HQ 16:9 | 4096 x 2160 3840 x 2160 | 29.97p 25.00p 24.00p 23.98p | DCI4K/4K 4:2:2 10bit | Not possible | 1.23x | ||
| DCI4K 17:9 4K 16:9 | 4096 x 2160 3840 x 2160 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | DCI4K/4K 4:2:2 10bit | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||
| FHD 17:9 FHD 16:9 | 2048 x 1080 1920 x 1080 | 59.94p 50.00p 29.97p 25.00p 24.00p 23.98p | FHD 4:2:2 10bit?*3 | 1.1x | 59.94p/50.00p:1.14x 29.97p/25.00p/24.00p/23.98p:1.0x | ||
| Resolution/Aspect | Size | Frame rate | HDMI outupt Resolution(Frame rate)/Sampling/Bit depth | Crop Magnification | |||
|---|---|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||||
| FHD 16:9 | 1920 x 1080 | 120p 100p | FHD(120p/100p) 4:2:2 10bit | Not possible | 1.23x | ||
| Resolution/Aspect | Size | Frame rate | Crop Magnification | ||
|---|---|---|---|---|---|
| DIS ON | DIS OFF | ||||
| 6.2K 16:9 | 6240 x 3512 | 29.97p 25.00p 24.00p 23.98p | Not possible | 1.23x | |
