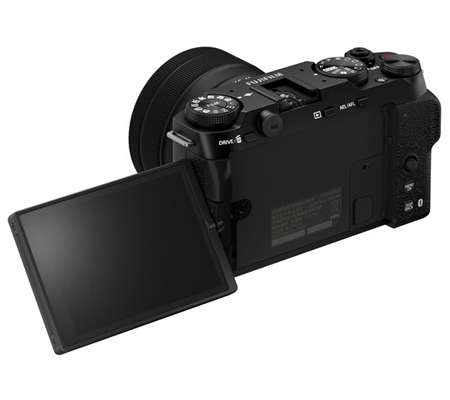

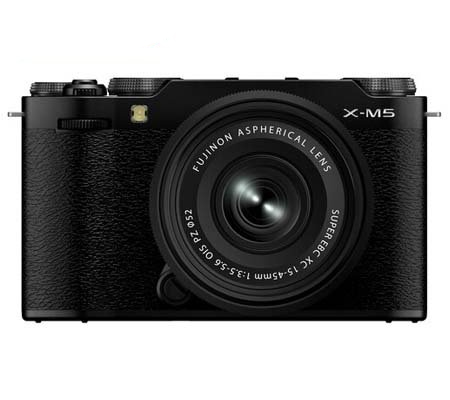

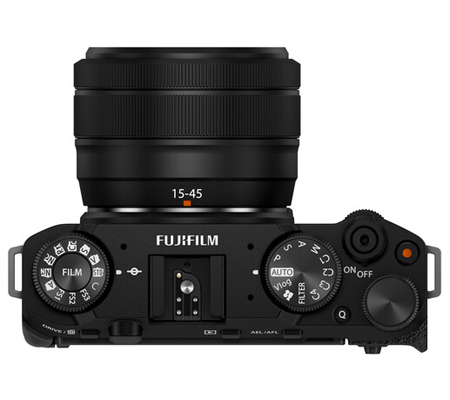

Fujifilm X-M5 kit 15-45mm f/3.5-5.6 Black

Model Name

FUJIFILM X-M5

Lens Mount

FUJIFILM X mount

Image Sensor

23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter

Number of effective pixels

26.1 millions pixels

Sensor Cleaning System

Ultra Sonic Vibration

Image Processing Engine

X-Processor 5

Storage media

SD Card (-2GB)

SDHC Card (-32GB)

SDXC Card (-2TB)

UHS-I

*Please see the Fujifilm website (https://fujifilm-x.com/support/compatibility/cameras/) to check memory card compatibility.

File format of still image

DCF

Compliant with Design rule for Camera File system (DCF2.0)

JPEG

Exif Ver.2.32

HEIF

4:2:2 10bit

RAW

14bit RAW (RAF original format)

TIFF

8bit / 16bit RGB (In-camera Raw Conversion Only)

Notes

*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing

Number of recorded pixels

[L]

3:2: 6240 x 4160
16:9: 6240 x 3512
1:1: 4160 x 4160

[M]

3:2: 4416 x 2944
16:9: 4416 x 2488
1:1: 2944 x 2944

[S]

3:2: 3120 x 2080
16:9: 3120 x 1760
1:1: 2080 x 2080

Panorama

[L]

vertical: 2160 x 9600
horizontal: 9600 x 1440

[M]

vertical: 2160 x 6400
horizontal: 6400 x 1440

Sensitivity

Still Image

Standard Output

AUTO1

AUTO2

AUTO3

ISO160~12800 (1/3 step)

Extended Output

ISO80

ISO100

ISO125

ISO25600

ISO51200

Movie

Standard Output

AUTO

ISO160~12800 (1/3 step)

Extended Output

ISO25600

Exposure control

TTL 256-zone metering
Multi
Spot
Average
Center Weighted

Exposure mode

P (Program AE)
A (Aperture Priority AE)
S (Shutter Speed Priority AE)
M (Manual Exposure)

Exposure compensation

Still

-5.0EV~+5.0EV 1/3EV step

Movie

-2.0EV~+2.0EV 1/3EV step

Image stabilizer

Digital Image Stabilization

Yes (movie mode only)

IS MODE BOOST

Yes (movie mode only)

Shutter type

Focal Plane Shutter

Shutter speed

Mechanical shutter

P mode

30sec. to 1/4000sec.

A mode

30sec. to 1/4000sec.

S/M mode

15min. to 1/4000sec.

Bulb

up to 60min.

Electronic shutter

P mode

30sec. to 1/32000sec.

A mode

30sec. to 1/32000sec.

S/M mode

15min. to 1/32000sec.

Bulb

1sec. Fixed

Electronic front curtain shutter

P mode

30sec. to 1/4000sec.

A mode

30sec. to 1/4000sec.

S/M mode

15min. to 1/4000sec.

Bulb

up to 60min.

Mechanical + Electronic shutter

P mode

30sec. to 1/32000sec.

A mode

30sec. to 1/32000sec.

S/M mode

15min. to 1/32000sec.

Bulb

up to 60min.

Notes

*Mechanical shutter works until 1/4000sec.

E-front + Mechanical shutter

P mode

30sec. to 1/4000sec.

E-front + Mechanical + Electronic shutter

P mode

30sec. to 1/32000sec.

Movie

6.2K

1/4000sec. to 1/24 sec.

4K/DCI4K

1/4000sec. to 1/24 sec.

FHD

1/4000sec. to 1/24 sec.

Notes

*Cannot choose slower shutter speed than framerate for some settings.

Synchronized shutter speed for flash

Mechanical shutter

1/180sec. or slower

Continuous shooting

Electronic ShutterApprox. 30fps (1.25x Crop)

JPEG

128frames

Compressed RAW

78frames

Lossless compressed RAW

46frames

Uncompressed RAW

23frames

Compressed RAW + JPEG

32frames

Lossless compressed RAW + JPEG

27frames

Uncompressed RAW + JPEG

21frames

Electronic ShutterApprox. 20fps (1.25x Crop)

JPEG

141frames

Compressed RAW

81frames

Lossless compressed RAW

47frames

Uncompressed RAW

24frames

Compressed RAW + JPEG

46frames

Lossless compressed RAW + JPEG

38frames

Uncompressed RAW + JPEG

21frames

Electronic ShutterApprox. 10fps (1.25x Crop)

JPEG

204frames

Compressed RAW

113frames

Lossless compressed RAW

57frames

Uncompressed RAW

25frames

Compressed RAW + JPEG

66frames

Lossless compressed RAW + JPEG

54frames

Uncompressed RAW + JPEG

22frames

Electronic ShutterApprox. 20fps

JPEG

127frames

Compressed RAW

60frames

Lossless compressed RAW

34frames

Uncompressed RAW

23frames

Compressed RAW + JPEG

34frames

Lossless compressed RAW + JPEG

26frames

Uncompressed RAW + JPEG

21frames

Electronic ShutterApprox. 10fps

JPEG

155frames

Compressed RAW

79frames

Lossless compressed RAW

41frames

Uncompressed RAW

24frames

Compressed RAW + JPEG

48frames

Lossless compressed RAW + JPEG

39frames

Uncompressed RAW + JPEG

22frames

Electronic ShutterApprox. 8fps

JPEG

173frames

Compressed RAW

82frames

Lossless compressed RAW

41frames

Uncompressed RAW

25frames

Compressed RAW + JPEG

52frames

Lossless compressed RAW + JPEG

37frames

Uncompressed RAW + JPEG

23frames

Electronic ShutterApprox. 8.0fps

JPEG

173frames

Compressed RAW

82frames

Lossless compressed RAW

38frames

Uncompressed RAW

25frames

Compressed RAW + JPEG

52frames

Lossless compressed RAW + JPEG

34frames

Uncompressed RAW + JPEG

23frames

Mechanical ShutterApprox. 5.0fps

Mechanical Shutter

JPEG

1000+frames

Compressed RAW

1000+frames

Lossless compressed RAW

152frames

Uncompressed RAW

38frames

Mechanical ShutterApprox. 4.0fps

Mechanical ShutterApprox. 3.0fps

Pre-shot

Electronic Shutter, 1.25 X CropApprox. 30fps

30frames

75frames

105frames

Electronic Shutter, 1.25 X CropApprox. 20fps

20frames

576frames

596frames

Electronic Shutter, 1.25 X CropApprox. 10fps

10frames

1000+frames

Electronic Shutter, 1.25 X CropApprox. 20fps

20frames

998frames

1018frames

Electronic Shutter, 1.25 X CropApprox. 10fps

10frames

1000+frames

Electronic Shutter, 1.25 X CropApprox. 8fps

8frames

1000+frames

Notes

*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames

Drive Mode

AE Bracketing

2 frames
3 frames
5 frames
7 frames
9 frames

Filmsimulation bracketing

Any 3 types of film simulation selectable

Dynamic Range Bracketing

100%
200%
400%

ISO sensitivity Bracketing

±1/3EV
±2/3EV
±1EV

White Balance Bracketing

±1
±2
±3

Focus Bracketing

AUTO
MANUAL

Multiple Exposure

Yes (Max. 9 frames)
Additive
Average
Bright
Dark

HDR Mode

AUTO
2
4
8
800% +

Advanced filter

Toy camera
Miniature
Pop color
High-key
Low-key
Dynamic tone
Soft focus
Partial color (Red / Orange / Yellow / Green / Blue / Purple)

Focus

Mode

Single AF
Continuous AF
MF

Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)

AF frame selection

Single point AF

13×9 / 25×17 (Changeable size of AF frame)

Zone AF

3×3 / 5×5 / 7×7 from 117 areas on 13×9 grid

All

Yes

Subject detection

Yes (Animal/Bird/Automobile/Motorcycle & Bike/Airplane/Train)

Flash

Shoe mount flash

Sync. Mode

1st Curtain

2nd Curtain

AUTO FP (HSS)

Flash Mode

TTL (TTL AUTO / STANDARD / SLOW SYNC. )

MANUAL

MULTI *When EF-X500 is set

OFF

Hot shoe

Yes (Dedicated TTL Flash compatible)

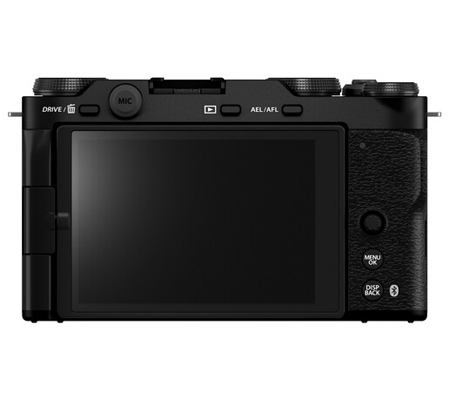

LCD monitor

Aspect Ratio

3:2

Dots

Approx. 1.04 million dots

Touch Screen Mode

Shooting Mode

Shooting

Focus Area

OFF

Double Tap Setting (ON/OFF)

Touch Function Setting (ON/OFF)

Touch Zoom (ON/OFF)

Playback Mode

Swipe

Pinch-in / Pinch-out

Double-tap

Drag

Movie recording

File format

MOV

HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)

MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)

MP4

MPEG-4 AVC/H.264, AAC

Movie compression

Long GOP

6.2K(3:2)

File size

6240 x 4160

Frame rate

29.97p
25p
24p
23.98p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

DCI4K(17:9)

File size

4096 x 2160

Frame rate

59.94p
50p
29.97p
25p
24p
23.98p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

4K(16:9)

File size

3840 x 2160

Frame rate

59.94p
50p
29.97p
25p
24p
23.98p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

Full HD(17:9)

File size

2048 x 1080

Frame rate

59.94p
50p
29.97p
25p
24p
23.98p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

Full HD(16:9)

File size

1920 x 1080

Frame rate

59.94p
50p
29.97p
25p
24p
23.98p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

Full HDLP(16:9)

File size

1920 x 1080 (1.29x Crop)

Frame rate

59.94p
50p

Bitrate

200Mbps
100Mbps
50Mbps
25Mbps
8Mbps

Full HD(17:9) High speed rec.

File size

2048 x 1080

Frame rate

240p
200p
120p
100p

Bitrate

200Mbps (recording)

Full HD(16:9) High speed rec.

File size

1920 x 1080

Frame rate

240p
200p
120p
100p

Bitrate

200Mbps (recording)

Film simulation mode

20 modes

PROVIA/Standard

Velvia/Vivid

ASTIA/Soft

Classic Chrome

REALA ACE

PRO Neg.Hi

PRO Neg.Std

Classic Neg.

Nostalgic Neg.

ETERNA/Cinema

ETERNA BLEACH BYPASS

ACROS

ACROS + Ye Filter

ACROS + R Filter

ACROS + G Filter

Black & White

Black & White + Ye Filter

Black & White + R Filter

Black & White + G Filter

Sepia

Monochromatic Color

Yes

Grain Effect

Roughness

STRONG, WEAK, OFF

Size

LARGE, SMALL

Color Chrome Effect

STRONG, WEAK, OFF

Color chrome Blue

STRONG, WEAK, OFF

Dynamic range setting

Still

AUTO / 100? / 200? / 400??

ISO restriction

DR100%: No limit?DR200%: ISO320 or more?DR400%: ISO640 or more

Movie

100? / 200? / 400??

ISO restriction

DR100%: No limit?DR200%: ISO320 or more?DR400%: ISO640 or more

White balance

Auto

White Priority
Auto
Ambience Priority

Custom

Custom1 – 3

Color temperature selection

2500K~10000K

Preset

Daylight
Shade
Fluorescent Light-1
Fluorescent Light-2
Fluorescent Light-3
Incandescent Light
Underwater

Clarity setting

±5 steps

Self-timer

Still

10sec.
2sec.

Movie

10sec.
5sec.
3sec.

Interval timer shooting

Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode)

Wireless transmitter

Standard

IEEE802.11b/g/n/ (standard wireless protocol)

Encryption

WPA/WPA2 mixed mode, WPA3

Access mode

Infrastructure

Bluetooth®

Standartd

Bluetooth Ver. 4.2 (Bluetooth low energy)

Operating frequency (Center frequency)

2402?2480MHz

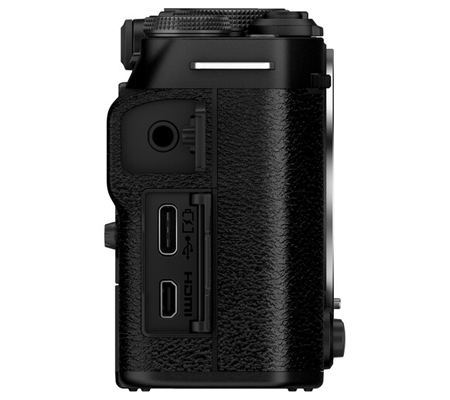

Terminal

Digital interface

USB Type-C USB 10Gbps

HDMI output

HDMI Micro connector (Type D)

Others

ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
Hot shoe

Power supply

NP-W126S Li-ion battery (included)

Battery life for still images

Economy Mode

Approx. 440 frames

Normal Mode

Approx. 330 frames

Notes

*When XF35mmF1.4 R is set

Actual battery life of movie capture

6.2K

Approx. 45min. (29.97p)

Approx. 50min. (29.97p)

Full HD

Approx. 45min. (59.94p)?Approx. 50min. (120P)

Notes

*Face detection is set to OFF

Continuance battery life of movie capture

6.2K

Approx. 65min. (29.97p)

Approx. 85min. (29.97p)

Full HD

Approx. 80min. (59.94p)

Notes

*Face detection is set to OFF
*Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.

Weight

including battery and memory card

Approx. 355g

excluding battery and memory card

Approx. 307g

Operation Environment

Operating Temperature

0?~+40?

Operating Humidity

10%~80% (no condensation)

Accessories included

Li-ion battery NP-W126S
Shoulder strap
Body cap
Cooling fan connector cover

Media Rec (SD memory card)

Resolution/Aspect	Size	Frame rate	File format/Compression	Bit rate*1	Bit depth	HDMI outupt Resolution(Frame rate)/Sampling/Bit depth HDMI	Crop Magnification
							DIS ON	DIS OFF
6.2K 3:2	6240 x 4160	29.97p 25.00p 24.00p 23.98p	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	10bit	FHD 4:2:2 10bit (H.265 Long GOP 4:2:2 MOV selected)23 4K 4:2:2 10bit (H.265 Long GOP 4:2:0 MOV selected)23	Not possible	1.0x
DCI4K 17:9 4K 16:9	4096 x 2160 3840 x 2160	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	10bit	DCI4K/4K 4:2:2 10bit	59.94p/50.00p:1.22x 29.97p/25.00p/24.00p/ 23.98p:1.32x	59.94p/50.00p:1.18x 29.97p/25.00p/24.00p/ 23.98p:1.0x
DCI4K 17:9 4K 16:9	4096 x 2160 3840 x 2160	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	8bit	DCI4K/4K 4:2:2 8bit	59.94p/50.00p:1.22x 29.97p/25.00p/24.00p/ 23.98p:1.32x	59.94p/50.00p:1.18x 29.97p/25.00p/24.00p/ 23.98p:1.0x
Long play 4K 16:9	4096 x 2160 3840 x 2160	29.97p 25.00p 24.00p 23.98p	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	10bit	DCI4K/4K 4:2:2 10bit	1.22x	1.18x
Long play 4K 16:9	4096 x 2160 3840 x 2160	29.97p 25.00p 24.00p 23.98p	H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	8bit	DCI4K/4K 4:2:2 8bit	1.22x	1.18x
FHD 17:9 FHD 16:9 FHD 9:16	2048 x 1080 1920 x 1080 1080 x 1920	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	10bit	FHD 4:2:2 10bit*3	1.32x	1.0x
FHD 17:9 FHD 16:9 FHD 9:16	2048 x 1080 1920 x 1080 1080 x 1920	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	8bit	FHD 4:2:2 8bit*3	1.32x	1.0x
Long play FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	59.94p 50.00p	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	10bit	FHD 4:2:2 10bit	x1.12	1.29x
Long play FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	59.94p 50.00p	H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	200Mbps 100Mbps 50Mbps 25Mbps 8Mbps	8bit	FHD 4:2:2 8bit	x1.12	1.29x
High speed FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	240fps(4×/8×/10×) 200fps(4×/8×) 120p (2x/4x/5x) 100p (2x/4x)	H.265 Long GOP 4:2:2 MOV H.265 Long GOP 4:2:0 MOV	200Mbps (when recording)	10bit	FHD(59.94p) 4:2:2 10bit*4	Not possible	1.29x
High speed FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080		H.264 Long GOP 4:2:0 MOV H.264 Long GOP 4:2:0 MP4	200Mbps (when recording)	8bit	FHD(59.94p) 4:2:2 8bit*4	Not possible	1.29x

HDMI Output

Resolution/Aspect	Size	Frame rate	HDMI outupt Resolution/Sampling/Bit depth				Crop Magnification
Resolution/Aspect	Size	Frame rate	HDMI outupt Resolution/Sampling/Bit depth				DIS ON	DIS OFF
6.2K 3:2	6240 x 4160	29.97p 25.00p 24.00p 23.98p	FHD 4:2:2 10bit23				Not possible	1.0x
DCI4K 17:9 4K 16:9	4096 x 2160 3840 x 2160	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	DCI4K/4K 4:2:2 10bit				59.94p/50.00p:1.22x 29.97p/25.00p/24.00p/ 23.98p:1.32x	59.94p/50.00p:1.18x 29.97p/25.00p/24.00p/ 23.98p:1.0x
FHD 17:9 FHD 16:9	2048 x 1080 1920 x 1080	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	FHD 4:2:2 10bit				1.32x	1.0x


HDMI Output (High speed REC HDMI ONLY?

Resolution/Aspect	Size	Frame rate	HDMI outupt Resolution(Frame rate)/Sampling/Bit depth				Crop Magnification
Resolution/Aspect	Size	Frame rate	HDMI outupt Resolution(Frame rate)/Sampling/Bit depth				DIS ON	DIS OFF
FHD 16:9	1920 x 1080	120p 100p	FHD(120p/100p) 4:2:2 10bit				Not possible	1.29x

HDMI RAW Output

Resolution/Aspect	Size	Frame rate	Bit depth				Crop Magnification
Resolution/Aspect	Size	Frame rate	Bit depth				DIS ON	DIS OFF
6.2K 3:2	6240 x 4160	29.97p 25.00p 24.00p 23.98p	12bit				Not possible	1.0x
5.2K 16:9	5232 x 2944	59.94p 50.00p 29.97p 25.00p 24.00p 23.98p	12bit				Not possible	1.19x

*1 Bit rate will be changed depend on the subject
*2 The resolution from HDMI output is different from selected setting
*3 When the aspect ratio is not 16:9, the image is output in 16:9 with a black band.
*4 The frame rate from HDMI output is different from selected setting
