Specification :
For the professional image-maker who needs resolution, speed, and video capabilities, there is the Canon EOS R5. Setting a new standard for versatility, this full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.
Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.
Complementing the imaging assets, the R5, while sporting a new design, also feels familiar to EOS 5-series users. An especially high-resolution 0.5" 5.76m-dot electronic viewfinder provides a realistic 120 fps refresh rate while the 3.2" rear touchscreen LCD monitor sports a vari-angle design to accommodate vlogging needs as well as benefit working from high and low angles. A top status LCD makes for an intuitive workflow and the camera also incorporates dual memory card slots—one CFexpress Type B, one SD UHS-II—along with Bluetooth and Wi-Fi wireless connectivity.
Lens Mount | Canon RF |
Camera Format | Full-Frame (1x Crop Factor) |
Pixels | Actual: 47.1 Megapixel Effective: 45.0 Megapixel |
Maximum Resolution | 8192 x 5464 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Sensor Type | CMOS |
Sensor Size | 36 x 24 mm |
Image File Format | JPEG, Raw |
Bit Depth | 14-Bit |
Image Stabilization | Sensor-Shift, 5-Axis |
ISO Sensitivity | Auto, 100 to 51200 (Extended: 100 to 102400) |
Shutter Speed | Mechanical Shutter 1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 0.5 Seconds |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Metering Range | -3 to 20 EV |
White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Recording Modes | Raw 12-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [2600 Mb/s] H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [12 to 180 Mb/s] |
External Recording Modes | 4:2:2 10-Bit DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p |
Recording Limit | Up to 29 Minutes, 59 Seconds |
Video Encoding | NTSC/PAL |
Audio Recording | Built-In Microphone (Stereo) External Microphone Input |
Audio File Format | AAC, Linear PCM |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) |
Autofocus Points | Phase Detection: 1053 |
Autofocus Sensitivity | -6 to +20 EV |
Viewfinder Type | Electronic (OLED) |
Viewfinder Size | 0.5" |
Viewfinder Resolution | 5,760,000 Dot |
Viewfinder Eye Point | 23 mm |
Viewfinder Coverage | 100% |
Viewfinder Magnification | Approx. 0.76x |
Diopter Adjustment | -4 to +2 |
Monitor Size | 3.2" |
Monitor Resolution | 2,100,000 Dot |
Monitor Type | Free-Angle Tilting Touchscreen LCD |
Built-In Flash | No |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe |

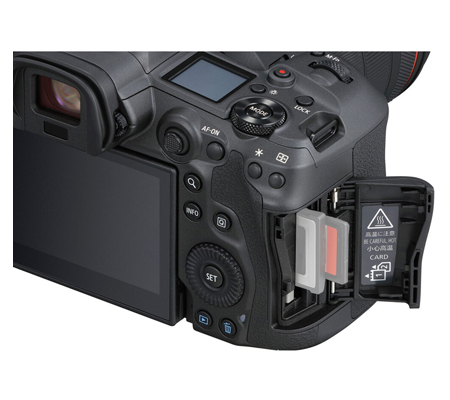

Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
Connectivity | USB Type-C (USB 3.1), HDMI D (Micro), 3.5mm Headphone, 3.5mm Microphone |
Wireless | Wi-Fi Bluetooth |
GPS | No |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 85% |
Battery | 1 x LP-E6NH Rechargeable Lithium-Ion |
Dimensions (W x H x D) | 5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm |
Weight | 1.62 lb / 738 g (Body with Battery and Memory) |
Package Weight | 3.56 lb |
Box Dimensions (LxWxH) | 11.1 x 9 x 6" |
