Specification :
| AF Modes | One-Shot AF, Servo AF |
| AF Point Selection | Spot AF, 1-point AF, Expand AF area (above/below/left/right or around), Flexible Zone AF 1 / 2 / 3, Whole area AF |
| AF System Points | Up to 651 AF frame zones |
| Built-in Flash | Available |
| Closest Focusing Distance (cm) | 0.2 / 0.66 (AF, f=18mm) 0.15 / 0.49 (MF, f=18mm) |
| Continuous Shooting Speed (Shots Per Sec) (Up To) | Mechanical shutter & Electronic 1st curtain: 15 Electronic shutter: 23 |
| Digital Zoom | - |
| Dimensions (Excl. Protrusions) (mm) (Approx.) | 122.5 x 87.8 x 106.8 |
| Drive System | Leadscrew type STM |
| Effective ISO | Stills: 100–32,000 (H:51,200) Movie: 100–12,800 HDR PQ movies: ISO 100–12,800 |
| Effective Pixels (Megapixels) | 24.2 |
| Exposure Compensation | ±3 stops in 1/3-stop or 1/2-stop increments AEB: ±3 stops in 1/3-stop or 1/2-stop increments |
| Eye Detection AF | Human and Animal eye detection ( All AF mode ) |
| Flash Modes | E-TTL II flash metering: Evaluative (Face Priority),Evaluative, Average |
| Focal Length (35mm Equivalent) | 29-72mm |
| Guide Number ISO 100 metres | 6 |
| Image Resolution | 6000×4000 (JPEG L/RAW/C-RAW/HEIF) 3984×2656 (HEIF, JPEG M) 2976×1984 (HEIF, JPEG S1) 2400×1600 (HEIF, JPEG S2) |
| Image Stabilizer | Optical Image Stabilizer + In-body 5-axis electronic image stabilisation |
| LCD Monitor (Size) (Inch) | 3.0 |
| LCD Monitor Resolutions (dots) | 1.04 million |
| Manual Focus | Yes |
| Memory Card Type | Single Card Slot (SD, SDHC*, SDXC*) *UHS-II cards compatible |
| Metering Mode | Stills: Evaluative, Partial, Spot, Center-weighted average Movie: Evaluative (when faces are detected), Center-weighted average (when no faces are detected) |
| Movie Format | MP4 |
| Optical Zoom | - |
| Optional Power | AC Power (AC Adapter AC-E6N and DC Coupler DR-E18) |
| Peripheral Connections | USB Type-C (Hi-Speed USB (USB 2.0) equivalent, External microphone IN, HDMI micro (Type D), Remote control (N3) |
| Processor Type | DIGIC X |
| Sensor Size | APS-C CMOS |
| Shooting Modes | A+/Special scene mode/Creative filters/Fv/P/Tv/Av/M/B/C1/C2 |
| Shutter Speed Range (Sec.) | Stills: Mechanical / Electronic 1st-curtain: 30 - 1/4000 Electronic shutter: 30 - 1/16000 Movie recording: Auto exposure: 1/25* - 1/4000, Manual exposure: 1/8* - 1/4000 *Varies by shooting mode and frame rate |
| Silent Shutter | Yes |

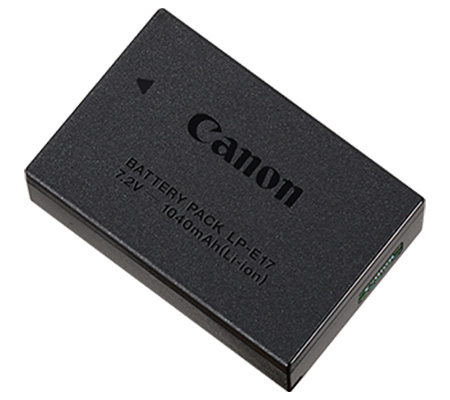

| Standard Power Supply | LP-E17 |
| Still Image Format | JPEG, HEIF, RAW, C-RAW |
| Viewfinder Coverage (Approx.) | 100% |
| Viewfinder Type | 0.39-inch OLED, approx. 2.36million dots 59.94/119.88 fps Refresh Rate |
| Weight (g) (Including the battery and memory card) (Approx.) *For camera kits, weight includes kit lens(es). | 559 |
| White Balance | Auto (Ambience priority / White priority), Daylight, Shade, Cloudy (Effective in twilight and sunset), Tungsten light, White fluorescent light, Flash*, Custom, Color temperature setting (approx. 2500–10000 K) White balance shift and white balance bracketing features available * Flash color temperature information transmission possible (EX / EL Series Speedlite) |
| X-sync (sec.) | Mechanical shutter: 1/200 Electronic 1st curtain: 1/250 |
